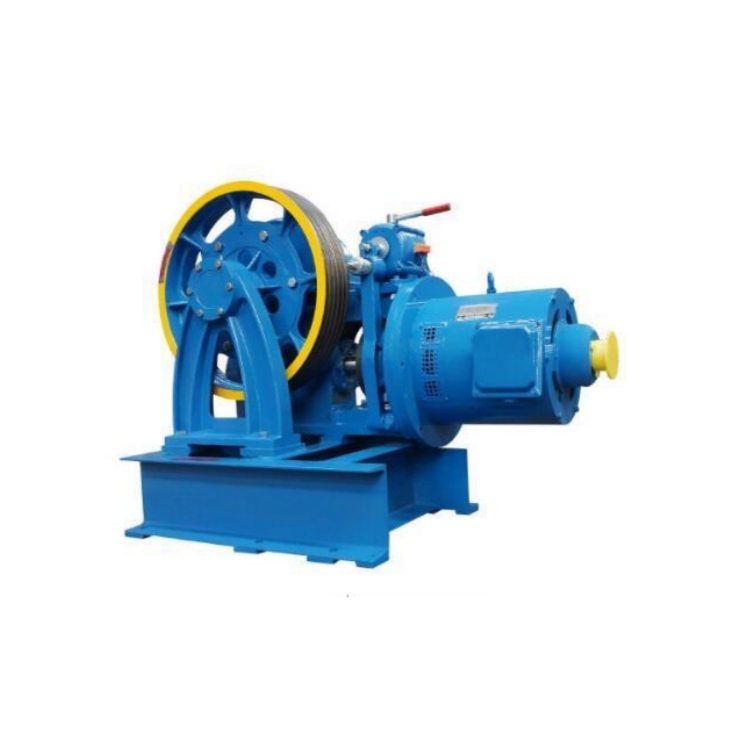

YJ160D Elevator AsynchronousTraction Machine
| Type | spec | traction ratio | rated speed(m/s) | rated load | static capacity | reduction ratio | spec of traction sheave | groove spacing (mm) |
type of motor | power(kw) | motor speed (r/min) |
power source | current (A) |
weight (kg) |
lifting height (m) |
| YJ160D | Ⅰ | 1:1 | 0.63 | 630kg | 3300kg | 1:54 | Φ450-5-11 | 15 | YPTD132S3-4 | 5.5 | 1460 | 340/50 | 12.9 | 328 | 30 |
| Ⅱ | 1 | 1:36 | Φ450-5-11 | YPTD132M2-4 | 7.5 | 17.7 | 50 | ||||||||
| Ⅳ | 0.63 | 1:54 | Φ500-4-12 | 19 | YPTD132S3-4 | 5.5 | 12.9 | 30 | |||||||
| Ⅴ | 1 | 1:36 | Φ500-4-12 | YPTD132M2-4 | 7.5 | 17.9 | 50 |
