Elevator wire rope specifications standards for elevator host machine /governor /doors

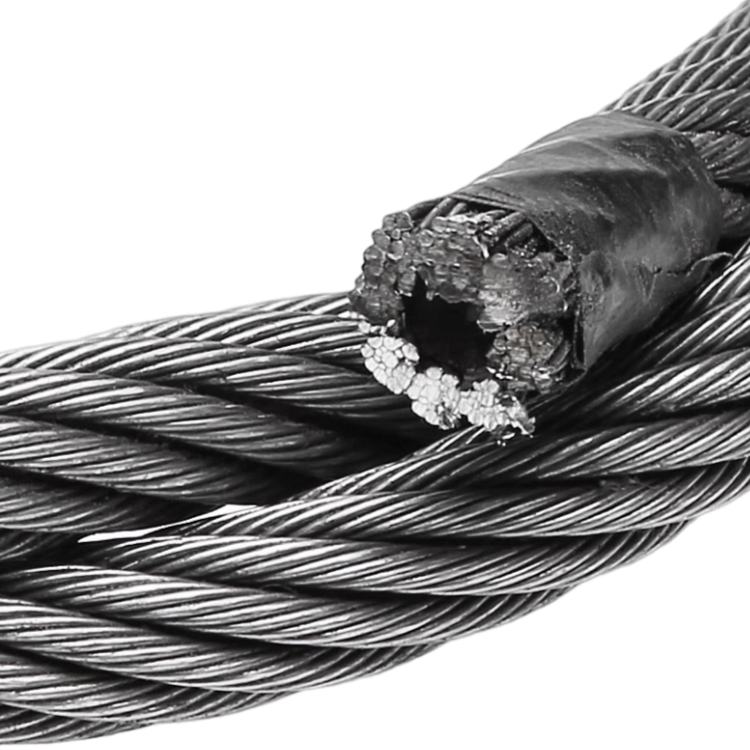

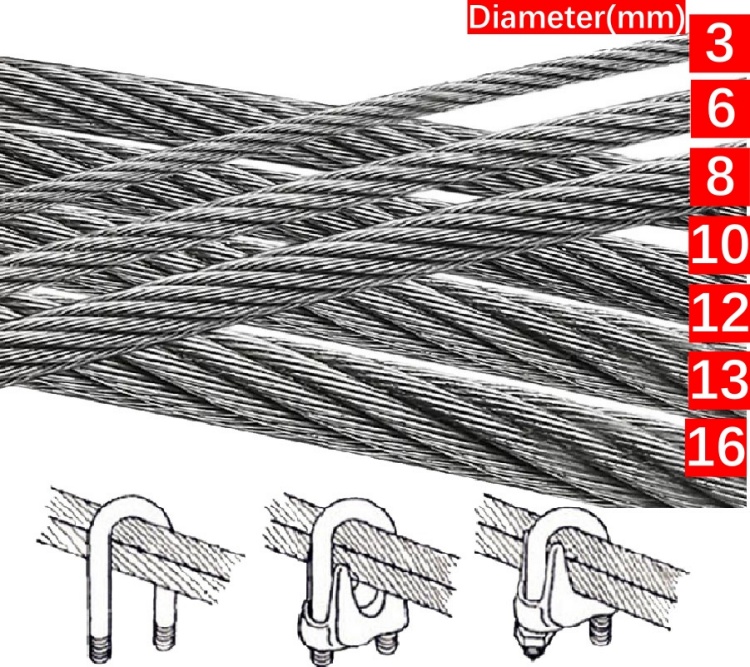

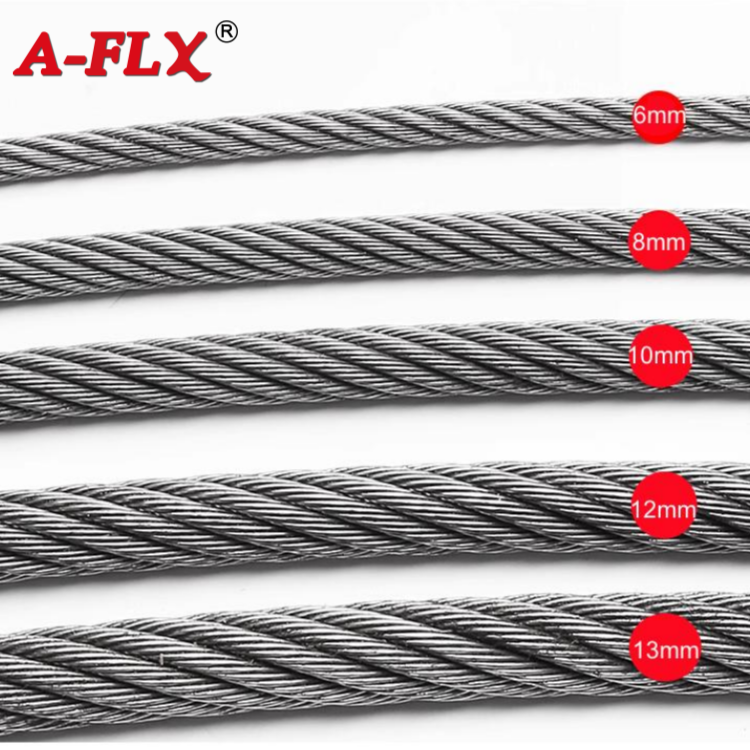

Wire rope diameter : 3/6/8//10/12/13MM
|
|
Elevators use specially designed wire ropes to provide both safety and smooth operation. These ropes, known as elevator hoist ropes, are specifically made to handle the load and constant movement required for elevator applications.
Here’s an overview of the Wire Rope Specifications: In wire ropes, strands are twisted around a core to form the complete rope, and the core itself comes in different types, classified into **fiber cores** and **steel cores**: 1. Fiber Core (FC): 2. Steel Core: |
| Wire rope structure decomposition diagram： | How to measure wire rope diameter: |
 |
 |
|
|
8-Strand Seale Type Independent Wire Rope Core : 8x19S+IWRC & 8x19S+CWC | |||||
| Nominal Diameter(mm) | Minnimum Breaking Load(kN) | Reference Weight(kg/100m) | Suitable For | |||
| Full-steel Core | Compound Steel Core | Full-steel Core | Compound Steel Core |
Medium and high speed traction machine elevator and hydraulic elevator |
||
| 8 | 38.0 | 36.9 | 26.0 | 24.6 | ||
| 10 | 59.5 | 57.6 | 40.7 | 38.5 | ||
| 12 | 85.6 | 83.0 | 58.6 | 55.4 | ||
| 13 | 100 | 97.4 | 68.8 | 65.1 | ||
| 16 | 152 | 147 | 104 | 98.6 | ||
 |
8-Strand Warrington Type Wire Rope : 8x19W+IWRC | |||
| Nominal Diameter(mm) | Minnimum Breaking Load(kN) | Reference Weight(kg/100m) | Suitable For | |
| 8 | 35.8 | 26.0 |
Medium and high speed traction machine elevator and hydraulic elevator |
|
| 10 | 55.9 | 40.7 | ||
| 12 | 80.5 | 58.6 | ||
| 13 | 94.5 | 68.8 | ||
| 16 | 143 | 104 | ||
 |
9-Strand Filler Type Wire Rope : 9x21Fi+IWRC & 9x25fi+IWRC |
||||
| Nominal Diameter(mm) | Minnimum Breaking Load(kN) | Reference Weight(kg/100m) | Suitable For | ||
| 9x21Fi+IWRC | 9x25Fi+IWRC | ||||
| 10 | – | 66.6 | 42.8 |
High Speed Elevator |
|
| 11 | – | 79.9 | 51.8 | ||
| 13 | – | 111.6 | 72.3 | ||
| – | 16 | 174 | 110 | ||
| – | 18 | 220 | 139 | ||
|
8-Strand Seale Type Hem Core Wire Rope (1370/1770MPa or 1620/1770MPa Right Hand Regular Lay)： 8x19S+NFC & 8x25Fi+NFC | |||||
| Nominal Diameter(mm) | Minnimum Breaking Load(kN) | Reference Weight(kg/100m) | Suitable For | |||
| 1370/1770 | 1620/1770 | 1770 |
Medium and high speed traction machine elevator |
|||
| 8 | 28.1 | 30.8 | – | 21.8 | ||
| 10 | 44.0 | 48.1 | – | 34.0 | ||
| 12 | 63.3 | 69.2 | – | 49.0 | ||
| 12.7 | 70.9 | – | – | 54.8 | ||
| 13 | 74.3 | – | 87.6 | 57.5 | ||
| 16 | 113 | – | 133 | 87.0 | ||
