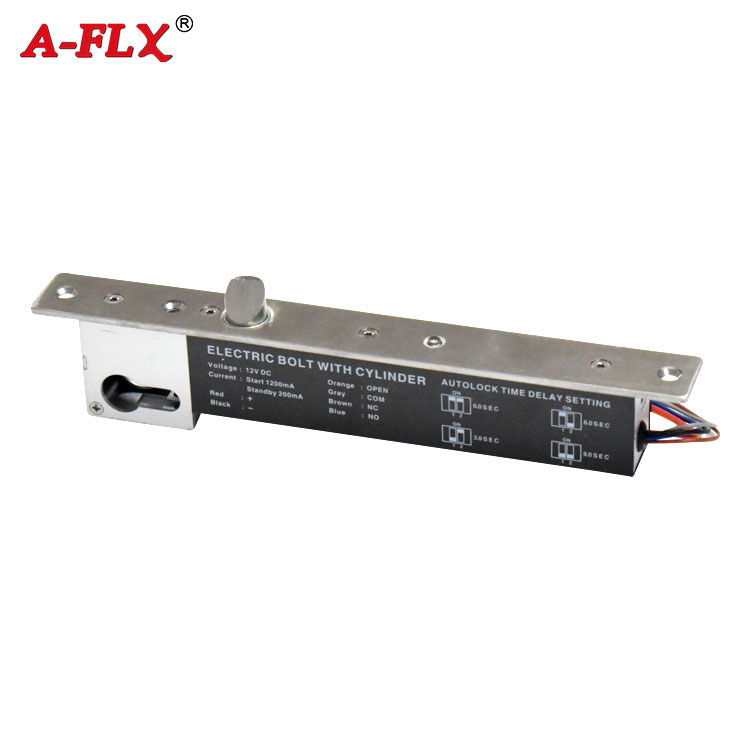

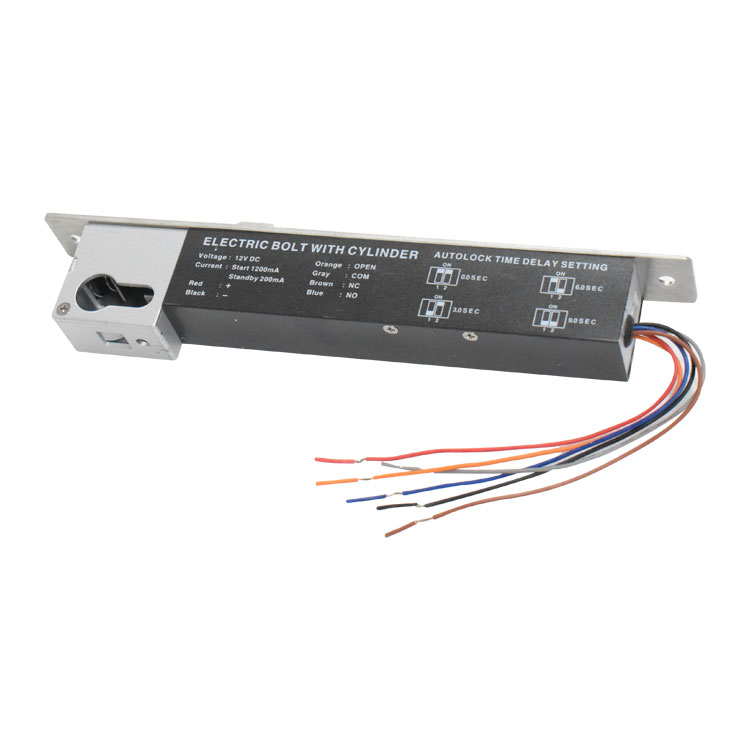

Product parameters: power off and lock
Lock body size: length 260x width 30x thickness 73(mm)
Short board size: length 100x width 25x thickness 3 (mm)
Lock cylinder size: 1 6mm protruding length x 16mm diameter high-strength solid bolt
Working voltage: 12VDC
Glancing current: 1200mA (instant start-up)
Working current: 200mA (completely. Locked)
Cylinder strength: 304 stainless steel polished, withstand 2000kg hit
Choice of door types: heavy duty door, metal door, wooden door
Signal output: lock state signal output NO/NC/COM contact
LED display: red light on locking; light off when unlocking
Magnetic induction distance of door seam: within 8mm
Panel material: 304 stainless steel panel, brushed surface
