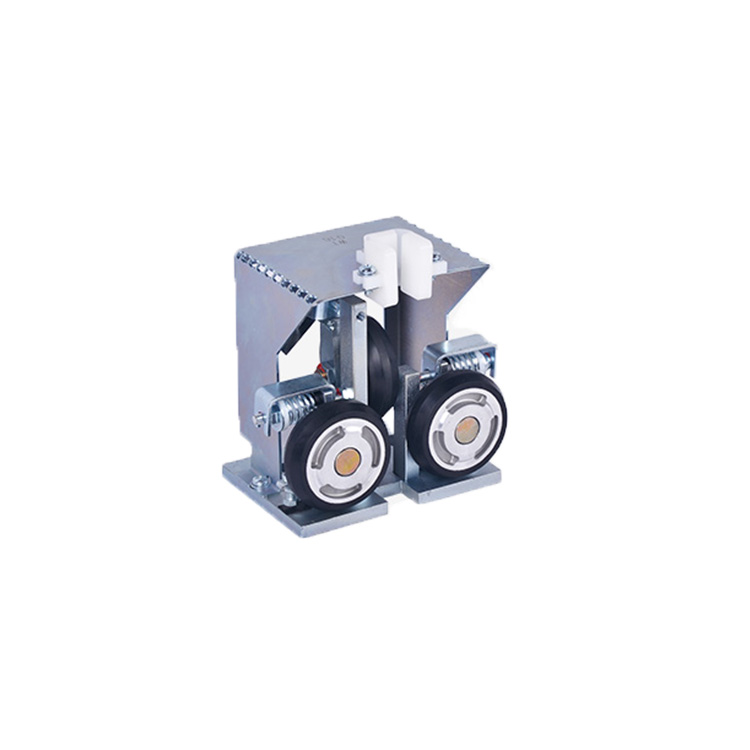

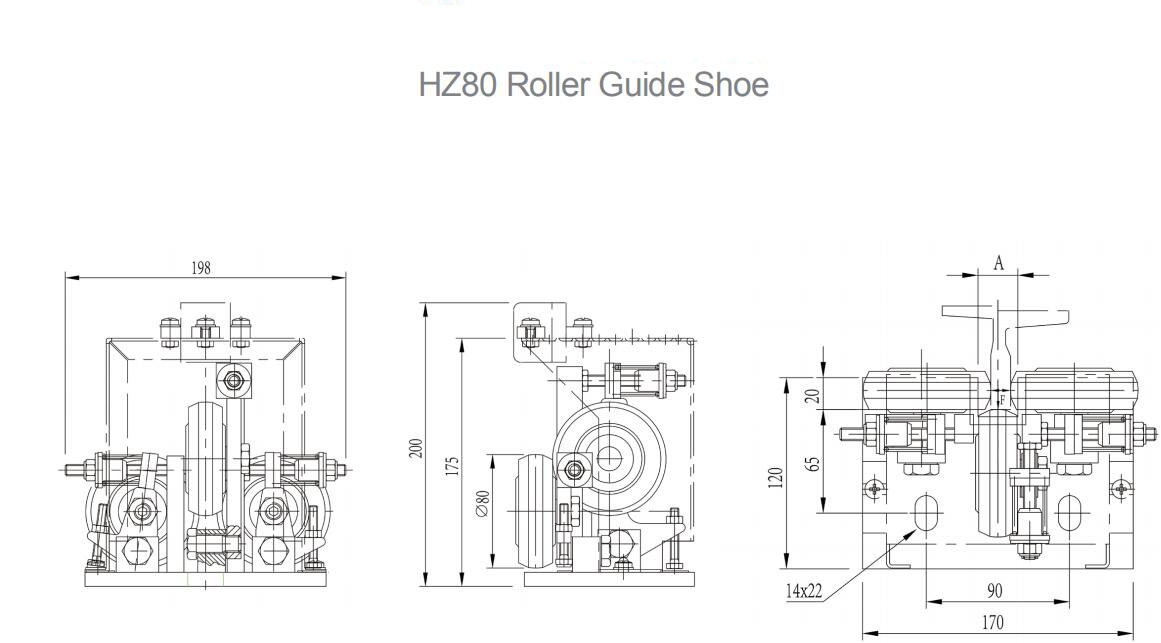

AF-HZ80 Elevator Cabin Roller Guide Shoe D80mm
Item | Style | Roller Dia. | RatedSpeed | Rail Width | Rated Load | A | Car Rated Load | ||
CAR | CWT | K | Normal | Barking | |||||
AF-HZ80-09 | Elastic | 80mm | 1.0m/s | 2.5m/s | 9mm | 200N | 1000N | 18mm | 1200KG |
AF-HZ80-10 | Elastic | 80mm | 1.0m/s | 2.5m/s | 10mm | 200N | 1000N | 18mm | 1200KG |
AF-HZ80-11 | Elastic | 80mm | 1.0m/s | 2.5m/s | 16mm | 200N | 1000N | 25mm | 1200KG |
