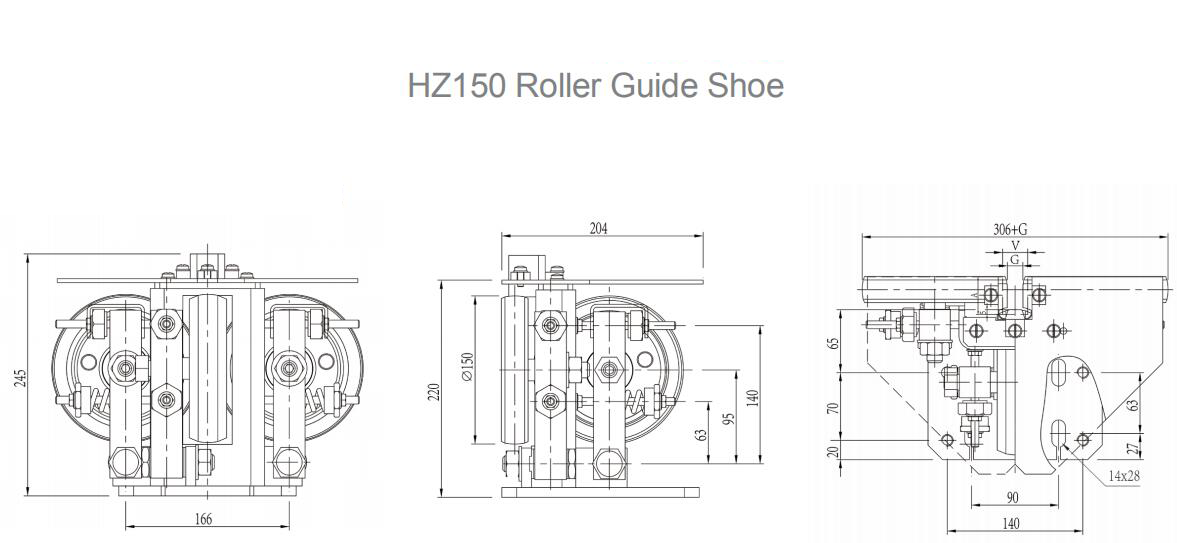

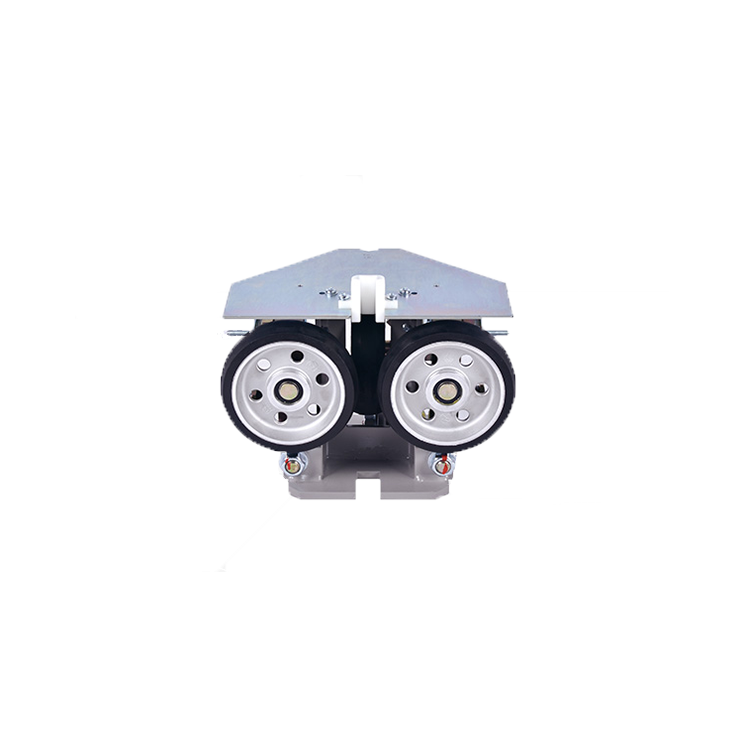

AF-HZ150 Elevator Roller Guide Shoe For 9/16/19/28.6mm Guide Rail
Item | Style | Roller Dia. | RatedSpeed | Rail Width | Rated Load | A | Car Rated Load | ||
CAR | CWT | K | Normal | Barking | |||||
AF-HZ150-G09 | Elastic | 150mm | 4.0m/s | 7.0m/s | 9mm | 450N | 3000N | 19mm | 2000KG |
AF-HZ150-G16S | Elastic | 150mm | 4.0m/s | 7.0m/s | 16mm | 450N | 3000N | 26mm | 2000KG |
AF-HZ150-G16L | Elastic | 150mm | 4.0m/s | 7.0m/s | 16mm | 450N | 3000N | 26mm | 2000KG |
AF-HZ150-G19 | Elastic | 150mm | 4.0m/s | 7.0m/s | 19mm | 450N | 3000N | 29mm | 2000KG |
AF-HZ150-G29 | Elastic | 150mm | 4.0m/s | 7.0m/s | 28.6mm | 450N | 3000N | 38.6mm | 2000KG |
