Elevator Lift Car Counterweight Roller Guide Shoe

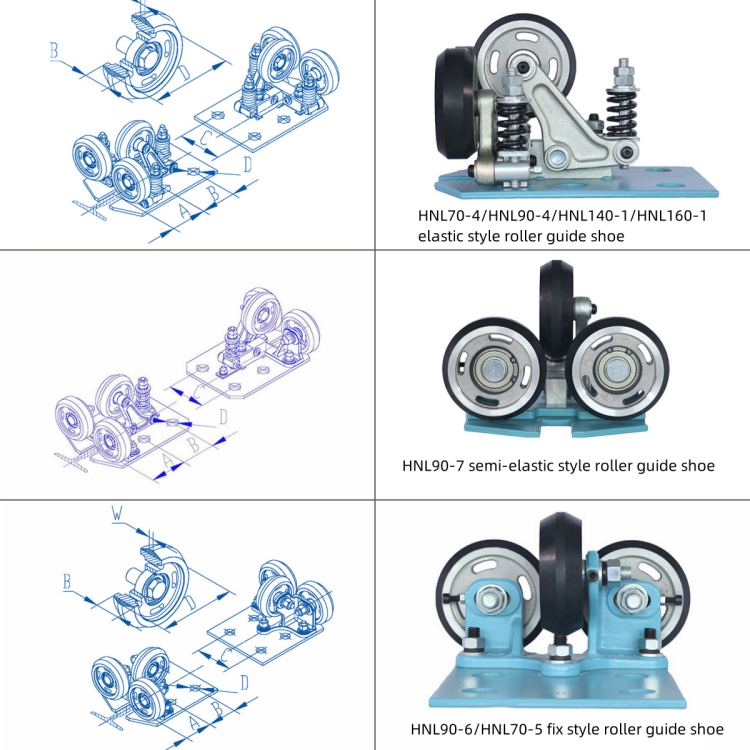

| Type | Style | Arrangement | Roller Diameter | W | B | Rated Speed（m/s) | guide rail width(mm） | Roller Diameter | Narmal Load | External Dimension (LXWXH)mm |
|||
| A | B | C | D | ||||||||||
| HNL70-4 | elestic style | 80 | 80 | 100 | 4-∅24 | 70 | 6/15 | 25 | ≤2.5 | 10、16 | 70 | 550 | 235x170x129 |
| HNL90-4 | elestic style | 80 | 80 | 100 | 4-∅24 | 90 | 6/15 | 30 | ≤3. | 10、16 | 90 | 800 | 230x196x150 |

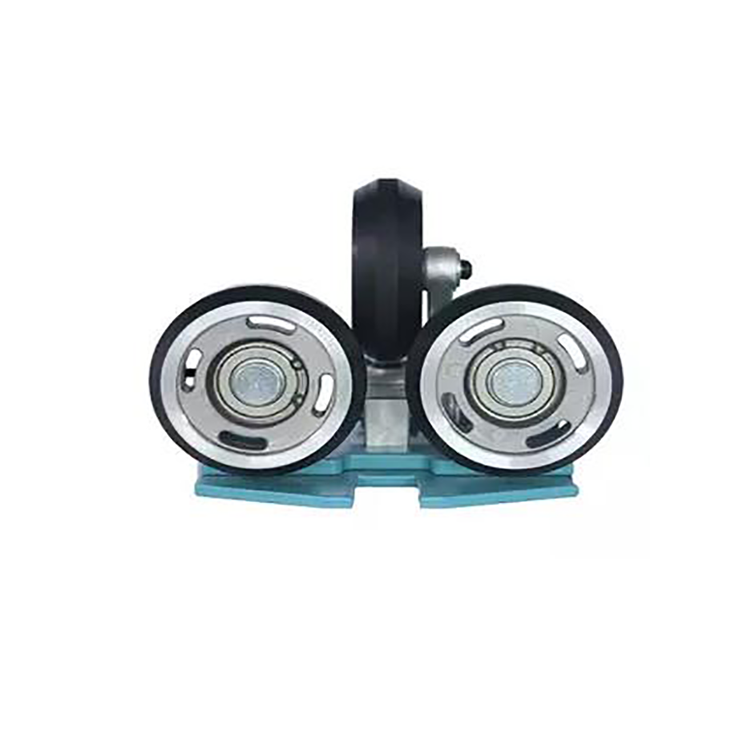

| HNL90-7 | semi-elestic style | 80 | 80 | 100 | 4-∅18 | 90 | 8 | 30 | ≤2. | 10、16 | 90 | 800 | 196x230x150 |
| HNL140-1 | elestic style | 80 | 80 | 110 | 4-∅20 | 140 | 6/15 | 30 | 2.5-4.0 | 16 | 140 | 800 | 230x296x210 |
| HNL160-1 | elestic style | 65 | 90 | 110 | 4-∅20 | 160 | 6/15 | 30 | 4.0-6.0 | 16 | 160 | 1200 | 215x336x246 |
| HNL90-6 | fixed style | 80 | 80 | 100 | 4-∅18 | 90 | 6/15 | 30 | ≤2.5 | 10、16 | 90 | 800 | 235x196x121 |
| HNL70-5 | fixed style | 85 | 0 | 70 | 2-28×38 | 70 | 6/15 | 25 | ≤2.5 | 10、16 | 70 | 550 | 155x160x101 |
