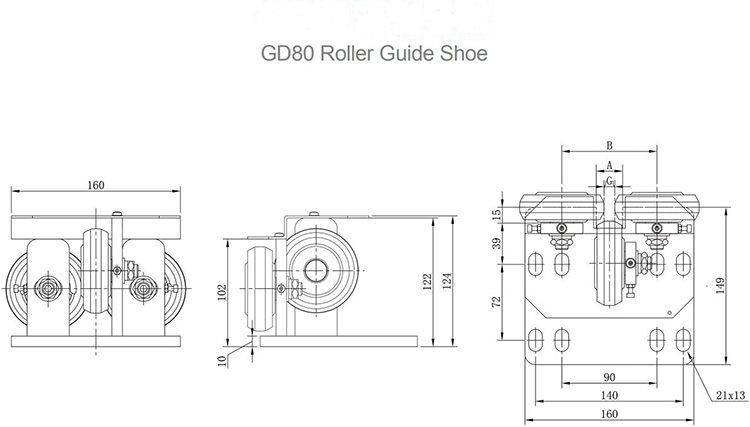

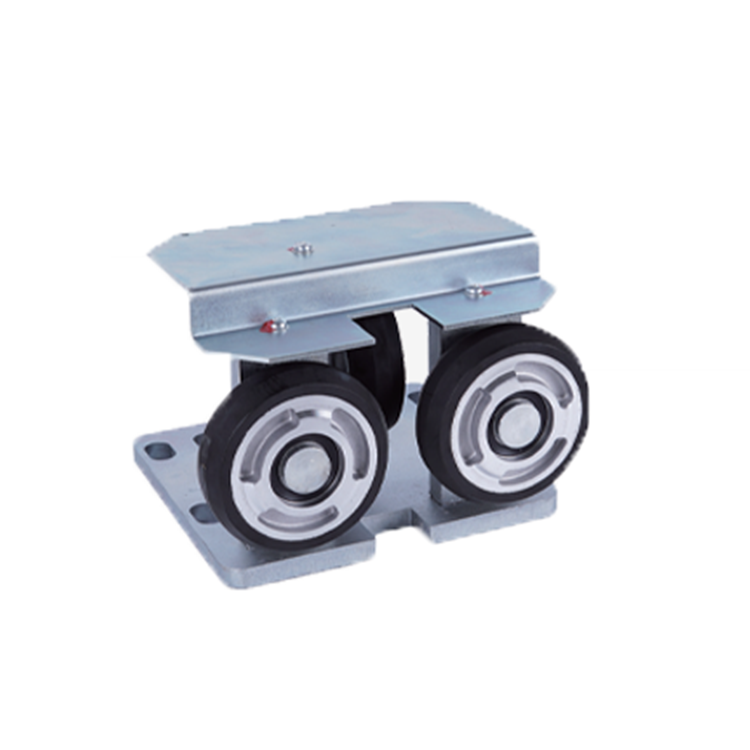

AF-GD80 Elevator Lift Counterweight Roller Guide Shoe
Item | Style | Roller Dia. | RatedSpeed | Rail Width | Rated Load | A | Car Rated Load | ||
CAR | CWT | K | Normal | Barking | |||||
AF-GD80-09 | Fixed | 80mm | 1.0m/s | 2.0m/s | 9mm | 200N | 1000N | 18mm | 1200KG |
AF-GD80-10 | Fixed | 80mm | 1.0m/s | 2.0m/s | 10mm | 200N | 1000N | 18mm | 1200KG |
AF-GD80-11 | Fixed | 80mm | 1.0m/s | 2.0m/s | 16mm | 200N | 1000N | 25mm | 1200KG |
