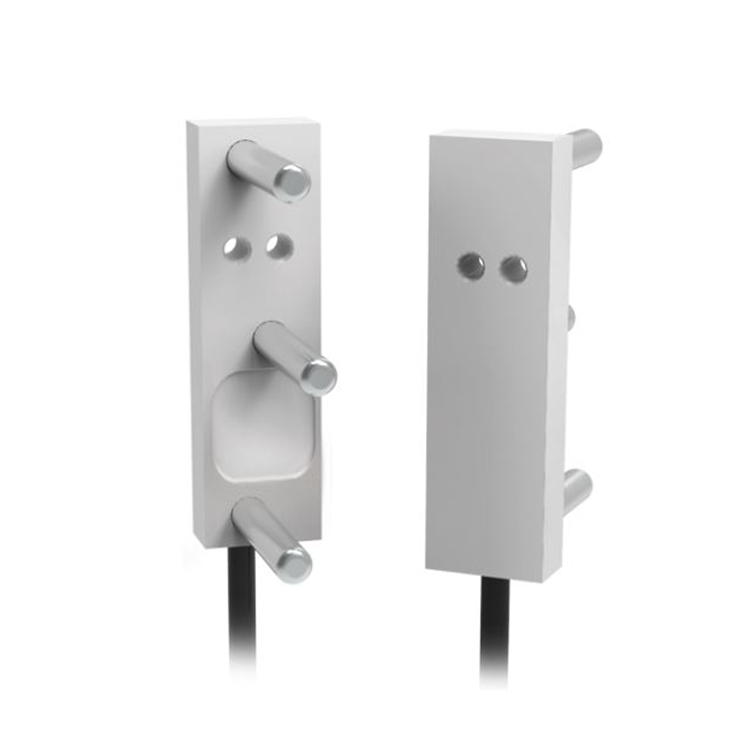

Elevator Traction Steel Belt Load Weighing Sensor AF-SWC

Product Name Elevator Sensor
Type Elevator Spare Parts
AF-ID No. AF-QT90188
Part No. AF-SWC
Place of Origin Guangdong, China
Delivery Time 3-5Working Days
Delivery DHL,TNT,FedEx,Air,Sea
Payment T/T,Western Union,Paypal

Hot Product

Main Product

Parameter Unit Specaication
Type AF-SWC
Rated Load(N.L)
Depends On Strip Size
KG
Rated Sensitivity(N.S) mV/V 1.3…2.0
N.S Differences Between Sensors %N.S. 2
Accuracy 0.25%
Balance mV/V ±0.20
Maximum Working Voltage V 12
Minimum Distance To Socket cm 25
Temperature Range Compensate ℃(℉) -10…+40(+14…+104)
Working -20…+60(-4…+140)
Store -20…+70(-4…+158)
Minimum Insulation Resistance
(Voltage Test: 100V)
4
Input Resistance Ω 350..400
Output Resistance Ω 350±1.5
Load Limit Safety %N.L. 120
Optimal 150
Cable Type 4*0.14mm²∅4.3
Terminal USB
Standard Length m 0.75
Material Polyurethane(PU)
Sensor Material Plating
Surface Treatment Aluminum
Protection Level IP65
