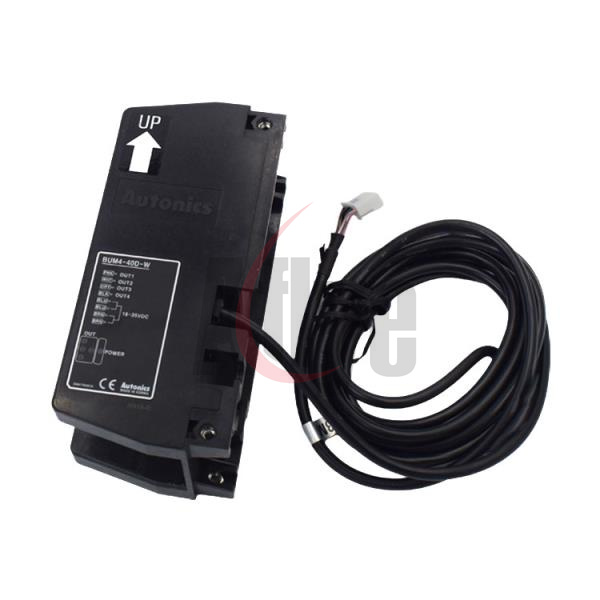

Elevator U-Shaped Through-beam type Photoelectric Sensor Switch BUM4-40D-W-3M/A
Product series :BUM Series
Functions
(Sensing method) Through-beam
(Sensing target) Opaque materials minimum diameter 4mm
(Sensing channel) 4 channels
(Sensing target) Opaque materials minimum diameter 4mm
(Sensing channel) 4 channels
Wavelength
(Infrared (IR) LED) 940 nm
Response time
(Maximum) 1ms / 0.001 s
Degree of protection
IP65
Material
(Case) ABS
(Cover) ABS
(Cover) ABS
Ambient air temperature for operation
-25 / +65 °C
Visual position indicator
(Operation indicator) Red LED
(Power indicator) Green LED
(Power indicator) Green LED
Contents
H01/HO4 (G01) Bracket
Current consumption
(Maximum) 50mA / 0.050 A
Manufacturer product status
Commercialized
Compliant with standard(s)
CE marking
Digital outputs
(Open collector) NPN
Length (m)
(Cable) 3 m
Sensing distance
40 mm
Shape
U-shaped
Protection functions
Reverse power polarity
Output short-circuit protection
Output short-circuit protection
Operating mode
Dark ON
