Elevator Lift Guide Rail Calibration Alignment Ruler

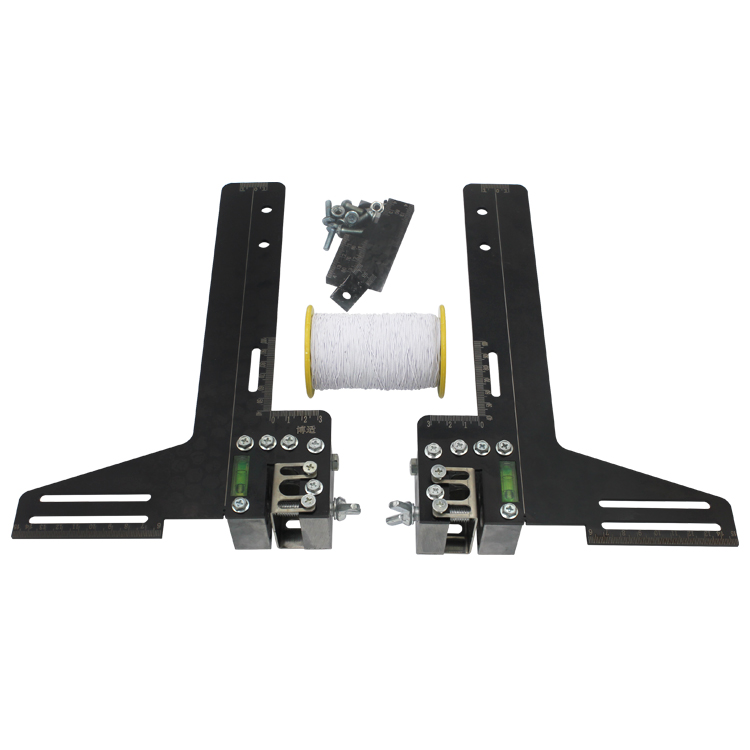

Elevator guide rail alignment gauge also known as elevator track calibrator, guide rail ruler,which is a brand-new and high-precision elevator guide rail installation tool,and suitable for scaffolding or non-scaffolding rail installation processing.
Guide Rail Alignment Gauge Installation Instruction:

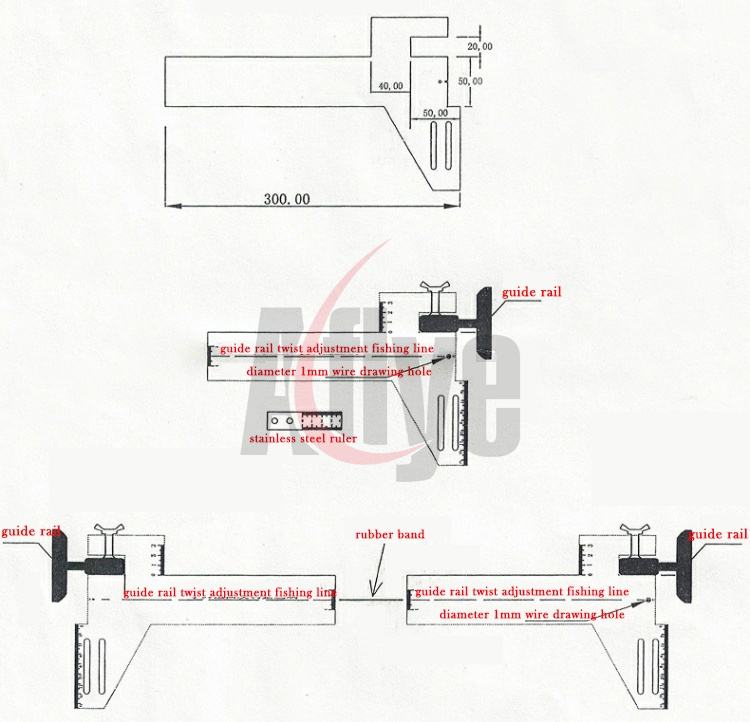

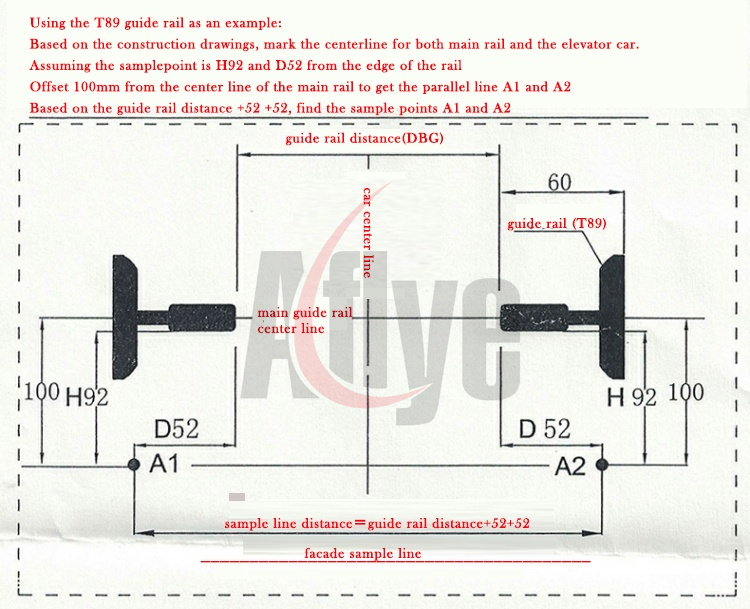

Using the T89 guide rail as an example: Based on the construction drawings, mark the centerline for both main rail and the elevator car. Assuming the samplepoint is H92 and D52 from the edge of the rail Offset 100mm from the center line of the main rail to get the parallel line A1 and A2 Based on the guide rail distance +52 +52, find the sample points A1 and A2

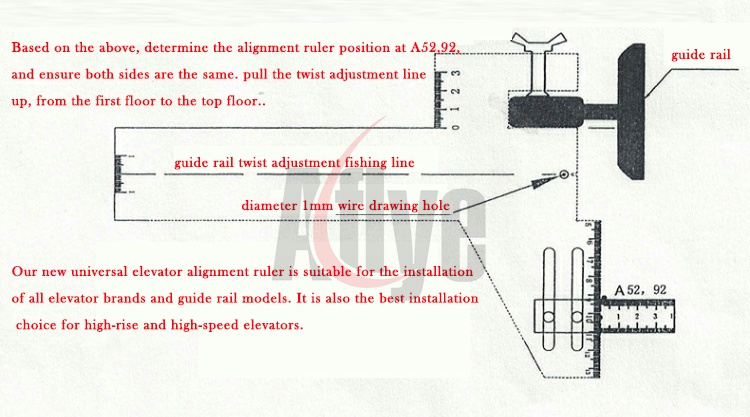

Based on the above, determine the alignment ruler position at A52,92, and ensure both sides are the same. pull the twist adjustment line up, from the first floor to the top floor
Our new universal elevator alignment ruler is suitable for the installation of all elevator brands and guide rail models. It is also the best installation choice for high-rise and high-speed elevators.
