WFO 075 Elevator Full-Plastic Compensation Balance Chain
Product Features:

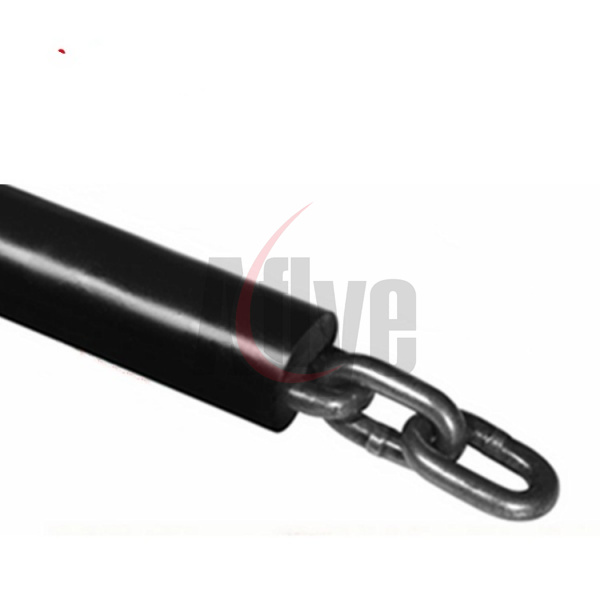

WFO Full-Plastic Elevator Balance Compensation Chain, a product with excellent performance, gives elevators an ideal, smooth-running balance compensation for new products. The structure of the product consists of a perfect combination of electro-welded anchor chain and composite material PVC to form its unique function. Its advantages are good elasticity, small bending radius, flame retardant, aging resistance, wide range of temperature adaptability, good smooth performance after use, low noise, suitable for medium and high speed elevator above 1.75/s.
Chain diameter(mm)
| WFO075 | 5.50mm |
| WFO100 | 6.35mm |
| WFO120 | 7.00mm |
| WFO150 | 7.50mm |
| WFO200 | 8.00mm |
| WFO250 | 9.00mm |
| spes | unit weight(kg/g) | outer diamter(mm) | Mix Bend Diameter | Breaking load≥kn |
| WFO 075 | 1.12±0.2 | 24±1.5 | 610 | 11.25 |
| WFO100 | 1.49±0.2 | 29±1.5 | 610 | 13.32 |
| WFO 120 | 1.88±0.2 | 31±1.5 | 610 | 18 |
| WFO150 | 2.23±0.2 | 35±1.5 | 610 | 23.66 |
| WFO200 | 2.98±0.2 | 38±1.5 | 610 | 29.97 |
| WFO250 | 3.72±0.2 | 42±1.5 | 610 | 40.82 |
| WFO300 | 4.46±0.2 | 45±1.5 | 610 | 45.58 |
| WFO350 | 5.2±0.1 | 49±1.5 | 610 | 53.4 |
| WFO400 | 5.68±0.1 | 52±1.5 | 610 | 62.6 |
