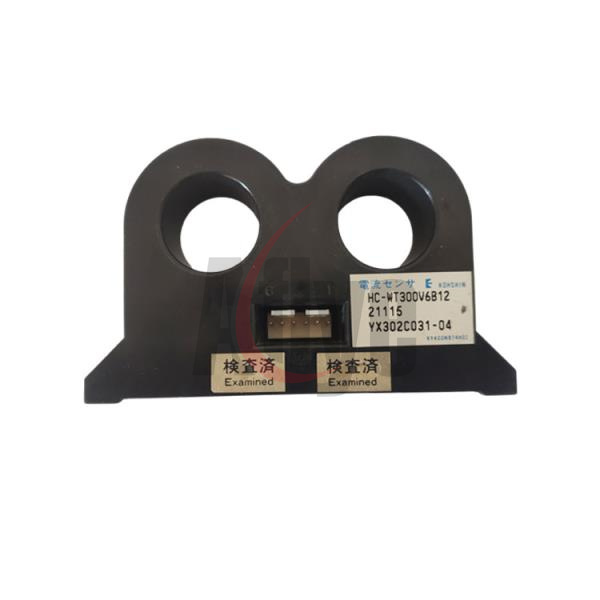

Elevator Current Sensor YX302C031-04

Model No.: YX302C031-04

An elevator current sensor is a critical component in elevator systems, typically used to monitor and measure electrical current within the motor or other electrical systems of the elevator. These sensors help ensure safe and efficient operation by providing real-time data to the elevator controller.

Applications in Elevator Systems:
Motor Current Monitoring:

Tracks the current drawn by the elevator motor during operation.
Helps detect overloads, undercurrents, or irregularities in the motor’s performance.
Overload Detection:

Measures current to determine if the elevator is carrying a load beyond its design capacity.
Triggers safety systems to prevent operation under unsafe conditions.
Fault Detection:

Identifies issues like short circuits, open circuits, or other electrical faults.
Energy Efficiency:

Monitors power consumption to optimize energy use and identify areas for improvement.
Preventive Maintenance:

Provides data to anticipate wear and tear, reducing unexpected downtime.

Types of Current Sensors Used:

Hall-Effect Sensors:

Non-contact sensors that measure the magnetic field generated by the current.
Widely used for their precision and reliability.
Current Transformers (CTs):

Measure alternating current (AC) by stepping down the current for safe measurement.
Shunt Resistors:

Measure current indirectly by monitoring voltage drop across a precision resistor.
Rogowski Coils:

Flexible sensors for measuring AC without physical contact with the conductor.
Solid-State Sensors:

Integrated devices with high accuracy, often used in modern elevator systems.

Key Features to Look For:

Accuracy: Precision in measurement for reliable operation.
Response Time: Fast response to detect faults immediately.
Range: Ability to measure a wide range of current values.
Durability: Designed to withstand harsh environments and long operational cycles.
