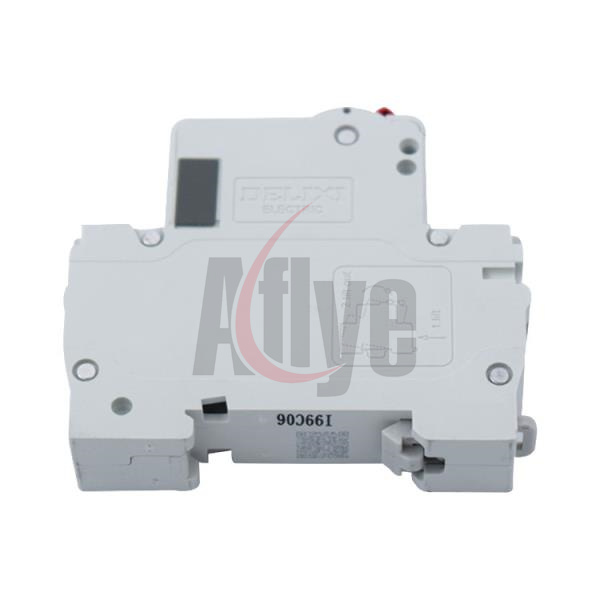

Elevator Air Switch Circuit Breaker DZ47S 1P C6

Functions of an Elevator Circuit Breaker:

1. Overcurrent Protection:Prevents damage to the elevator motor, control panels, and other electrical components during power surges or overload conditions.
2. Short Circuit Protection:Automatically disconnects the circuit in the event of a short circuit, reducing the risk of electrical fires or severe equipment damage.
3. Isolation:Allows maintenance personnel to safely isolate electrical power to the elevator system during repairs or inspections.
4. Reset Capability:Many circuit breakers can be manually reset after tripping, enabling the system to return to normal operation without replacing the breaker.

Types of Circuit Breakers Used in Elevators:

1. Miniature Circuit Breakers (MCBs):
   • Used for low-current applications, such as lighting and auxiliary circuits within the elevator system.
2. Molded Case Circuit Breakers (MCCBs):
   • Designed for higher current capacities, commonly used to protect the main elevator motor and control system.
3. Residual Current Circuit Breakers (RCCBs):
   • Protect against leakage currents that could lead to electric shocks or system faults.
4. Air Circuit Breakers (ACBs):
   • Used in high-capacity elevators, particularly in large buildings or industrial applications.
5. Overload Relays:
   • Paired with circuit breakers to provide additional motor protection against prolonged overload conditions.

Key Considerations for Elevator Circuit Breakers:

1. Voltage and Current Ratings:
   • The circuit breaker must match the elevator’s electrical requirements, including the voltage level and maximum operating current.
2. Breaking Capacity:
   • The breaker should have sufficient breaking capacity to handle fault currents without damage.
3. Trip Characteristics:
   • Select breakers with appropriate trip curves (e.g., Type B, C, or D) based on the electrical load characteristics.
4. Compliance with Standards:
   • Ensure the breaker complies with local electrical codes and international safety standards (e.g., IEC 60947, UL 489).
5. Environmental Durability:
   • The breaker should withstand the operating environment, including humidity, temperature variations, and vibrations.

Maintenance and Testing:

1. Routine Inspection:
   • Check for signs of wear, corrosion, or damage to the breaker and associated wiring.
2. Testing:
   • Periodically test the breaker’s trip functionality to ensure it operates correctly during faults.
3. Tightening Connections:
   • Ensure terminal connections are secure to prevent overheating or arcing.
4. Replacement:
   • Replace circuit breakers nearing the end of their lifecycle or showing consistent performance issues.
