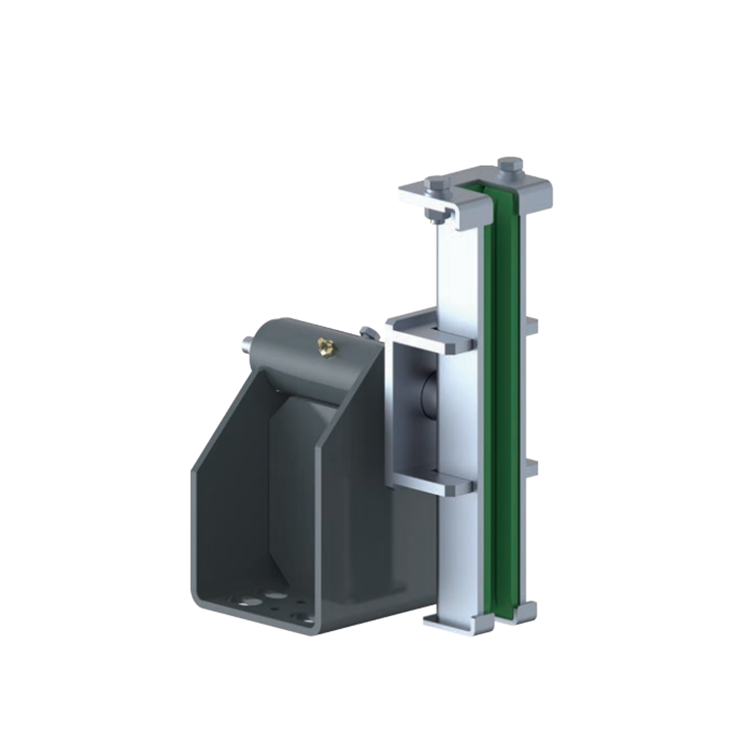

AF-SG37 Elevator Lift Sliding Guide Shoe For 16/19 mm Guide Rail

Product Name Elevator Sliding Guide Shoe
Type Elevator Spare Parts
AF-ID NO. AF-SG37
Model NO. SG37
Delivery Time 3~5Working days
Delivery DHL,TNT,FedEx,Air,Sea
Payment T/T,Western Union,Paypal

Hot Product

Main Product

AF-SG37 Elevator Lift Sliding Guide Shoe For 16/19 mm Guide Rail

Type Rated Speed Rated Load
(Reference)
Width Of Guide Rail Max. Force During Running Max. Force During Loading Lubricants
CWT
[m/s]
CAR
[m/s]
Width Of Guide Rail Side Pressure
Fx[N]
Normal Pressure
Fy[N]
Side Pressure
Fx[N]
Normal Pressure
Fy[N]
AF-SG37 / 2.5 3000KG  16/19 3500 3500 7000 7000



AF-SG37 Elevator Sliding Guide Shoe For 16/19 mm Guide Rail
