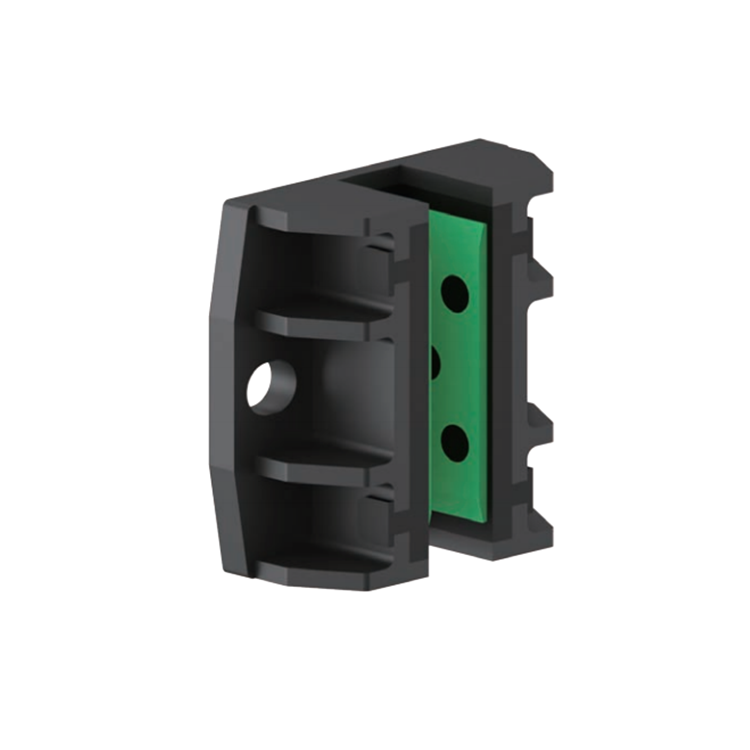

AF-SG15S Elevator Slide Guiding Shoes For 9/10/16/16.4 mm Guide Rail

Type Rated Speed Rated Load
(Reference)
Width Of Guide Rail Max. Force During Running Max. Force During Loading Lubricants
CWT
[m/s]
CAR
[m/s]
K[mm] Side Pressure
Fx[N]
Normal Pressure
Fy[N]
Side Pressure
Fx[N]
Normal Pressure
Fy[N]
AF-SG15S 1.75 1.0 / 9/10/16/16.4 600 600 1200 1200 ×

AF-SG15S Elevator Solid Luvricant Slide Guide Shoe For 9/10/16/16.4 mm Guide Rail
