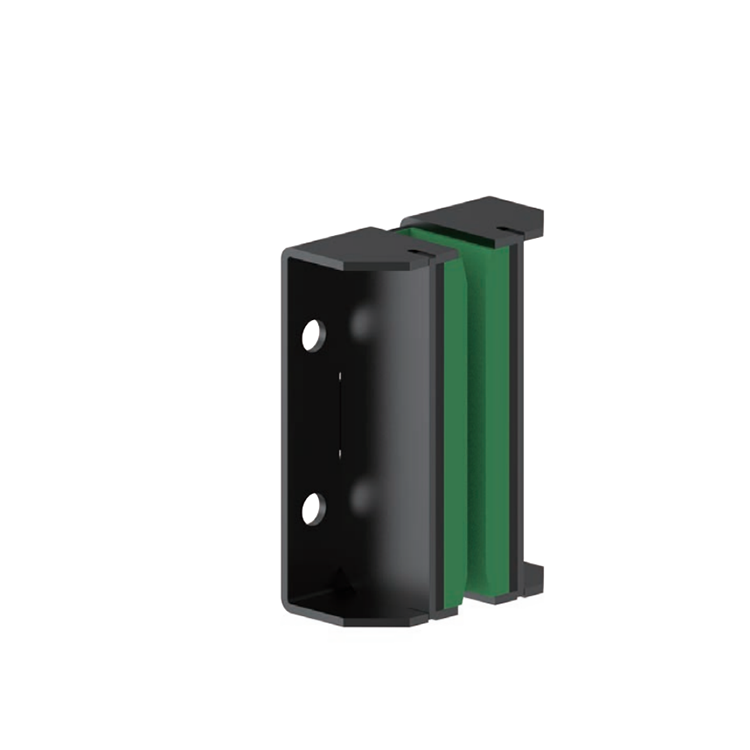

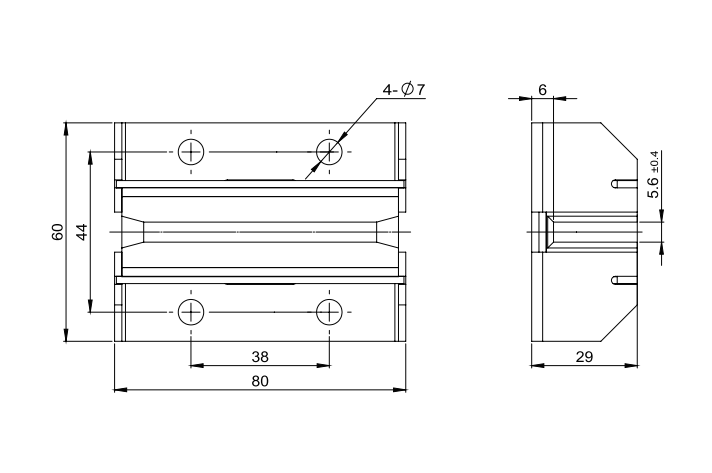

AF-SG14B Elevator Sliding Guide Shoe
Type | Rated Speed | Rated Load (Reference) |
Width Of Guide Rail | Max. Force During Running | Max. Force During Loading | Lubricants | |||
CWT [m/s] |
CAR [m/s] |
K[mm] | Side Pressure Fx[N] |
Normal Pressure Fy[N] |
Side Pressure Fx[N] |
Normal Pressure Fy[N] |
|||
AF-SG14B | 1.0 | / | / | 5 | 300 | 300 | 500 | 500 | × |
