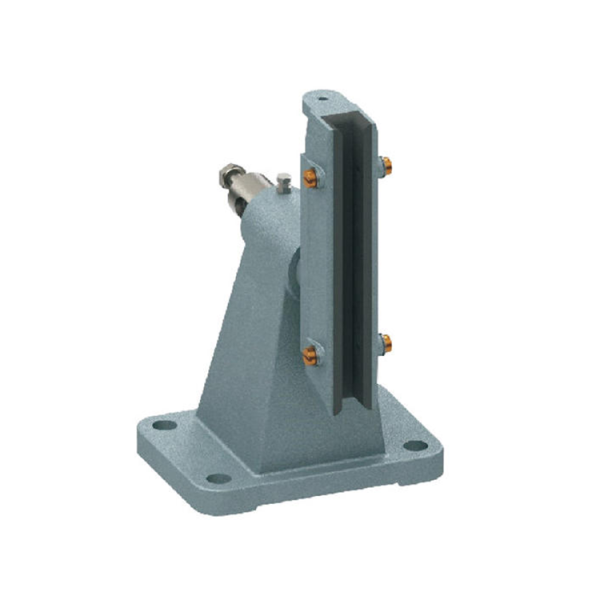

| Product Name | Elevator Lift Counterweight Sliding Guide Shoe |
| Type | Elevator Spare Parts |
| AF-ID NO. | AF-OX-T22 |
| Model NO. | AF-OX-T22 |
| Delivery Time | 4-6 Working day |
| Delivery | DHL,TNT,FedEx,Air,Sea |
| Payment | T/T,Western Union,Paypal |
Hot Product
Main Product
| Parameter | AF-OX-T22 |
| Applicable speed | ≤2.5m/s |
| Rated load | ≤3000kg |
| Forward pressure | ≤1780N |
| Lateral pressure | ≤1600N |
| Applicable width of guide rail surface | 10/16mm |
| Matching boot lining | OX-450C/D(220) |

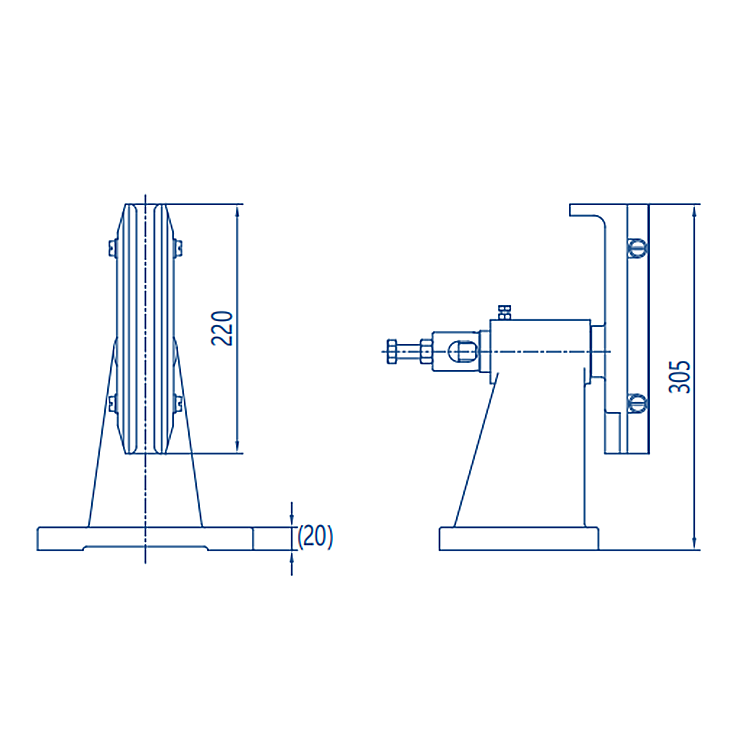

| Type | A | B | C | D | Guide rail surface width |
| A01 | 65 | 70 | 110 | 170 | 16 |
| A02 | 65 | 70 | 110 | 170 | 10 |
| A03 | 45 | 100 | 150 | 190 | 16 |
| A04 | 45 | 100 | 150 | 190 | 10 |
