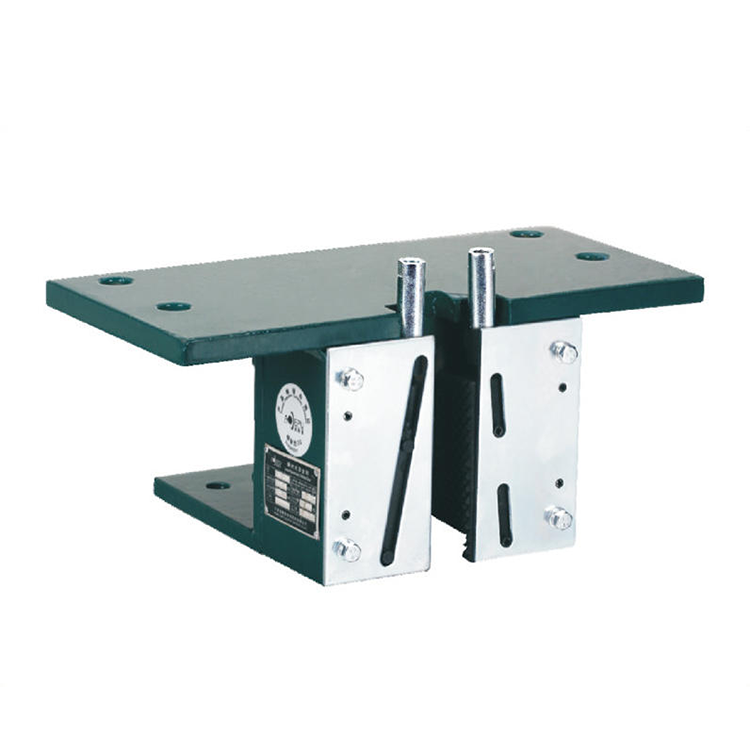

AF-OX-388 Elevator Car Counterweight Instantaneous Safety Gear
Parameter | AF-OX-388 |
Rated speed | ≤0.63m/s |
Permissible mass | ≤12500kg |
Applicable width of guide rail surface | 15.88/16mm Guide rail width |
Pulling form | Double pulling (Standard M10) |

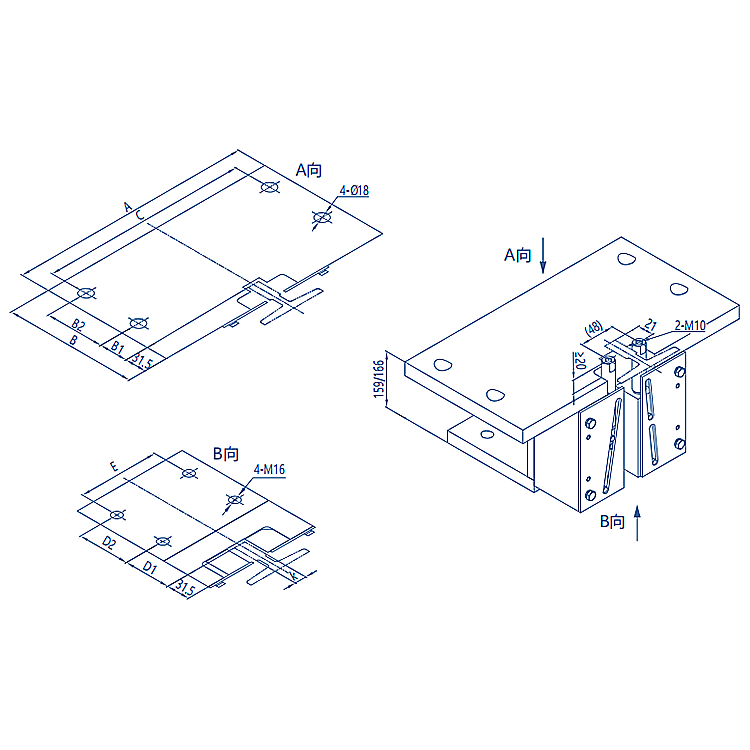

Type | A value | B value | C value | B1 value | B2 value | D1 | D2 | E | Match the guide shoe |
A01 | 380 | 180 | 340 | 36 | 80 | 63 | 70 | 110 | OX-T22 |
A02 | 320 | 180 | 280 | 36 | 80 | 63 | 70 | 110 | OX-T22 |
A03 | 380 | 180 | 340 | 36 | 80 | 75 | 70 | 126 | OX-12 |
A04 | 320 | 180 | 280 | 36 | 80 | 75 | 70 | 126 | OX-12 |
