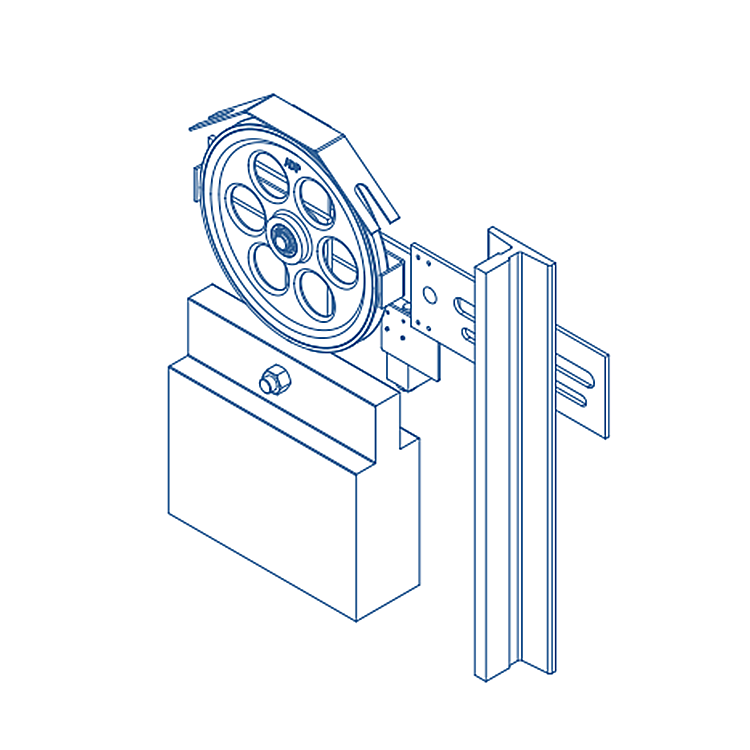

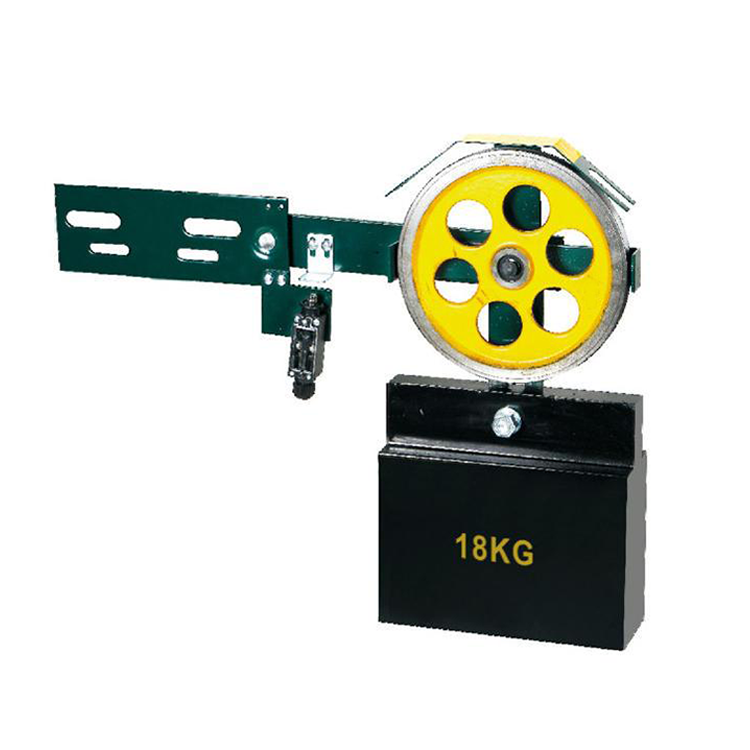

AF-OX-300A Elevator Lift Tension Device

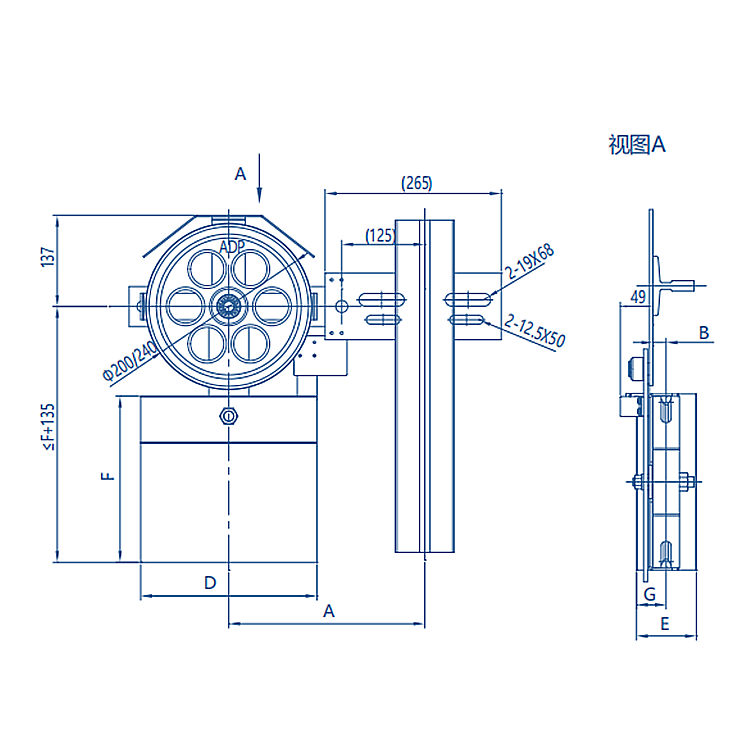

Parameter A01 A02 A03 A04
Pitch diameter of the sheave Ø200mm Ø200mm Ø240mm Ø240mm
Diameter of the rope Ø6mm Ø6mm Ø6/Ø8mm Ø6/Ø8mm
A 320/350/365/405/425mm 350/365/405/425mm 350/365/405/425mm 350/365/405/425mm
B 20mm 20mm 20mm 20mm
Counterweight mass 18kg 18kg 30kg 18kg
Applicable hoistway height ≤50m ≤50m 50~100m ≤50m
Counterweight weight Counterweight material D E F G
18kg Cast iron 260 55 250 25
30kg 250 70 275 35
18kg Barite 270 100 265 50
30kg 300 140 305 70

AF-OX-300A Elevator Lift Tension DeviceAF-OX-300A Elevator Lift Tension Device
