1. Using permanent magnet high-power motor, wide torque range, high efficiency, environmental protection, energy saving
2. The synchronous vane is equipped with door lock function, the door operator and landing door device 100% opened or closed synchronously
3. The synchronous belt drive directly, no slip, running smoothly in lower noise
4. Full-closed-loop control technology, safe, reliable and easy to adjust
5. The door hanger has a safety hook to prevent collision and fall off

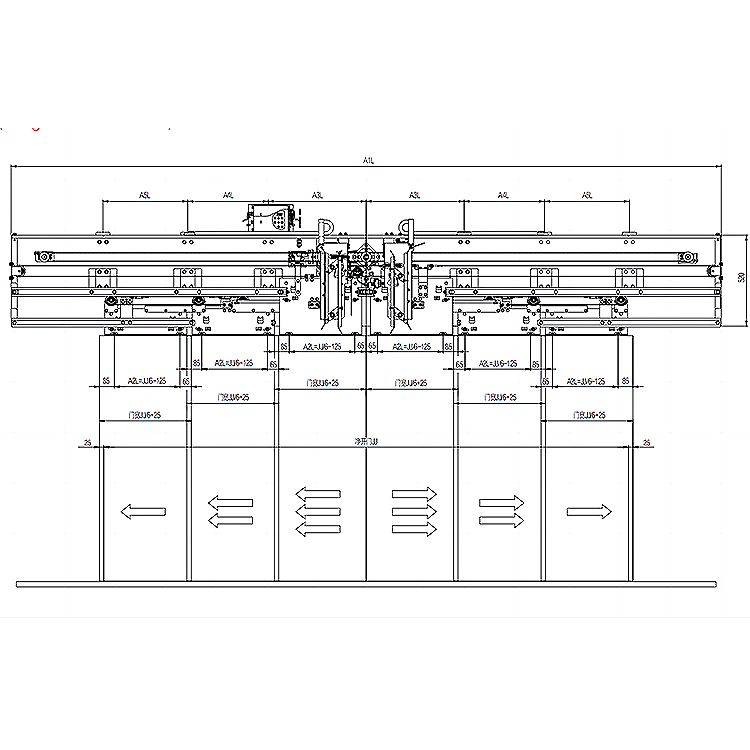

JJ | 3000 | 3100 | 3200 | 3300 | 3400 | 3500 | 3600 | 3700 | 3800 | 3900 | 4000 | 4100 | 4200 | 4300 | 4400 | 4500 | 4600 | 4700 | 4800 | 4900 | 5000 |
A1L | 4060 | 4194 | 4326 | 4460 | 4594 | 4726 | 4860 | 4994 | 5126 | 5260 | 5394 | 5526 | 5660 | 5794 | 5926 | 6060 | 6194 | 6326 | 6460 | 6594 | 6726 |
A2L | 375 | 392 | 408 | 425 | 442 | 458 | 475 | 492 | 508 | 525 | 542 | 558 | 575 | 592 | 608 | 625 | 642 | 658 | 675 | 692 | 708 |
A3L | 560 | 577 | 593 | 610 | 627 | 634 | 660 | 677 | 693 | 710 | 727 | 743 | 760 | 777 | 793 | 810 | 827 | 843 | 860 | 877 | 893 |
A4L | 460 | 477 | 494 | 510 | 527 | 544 | 560 | 577 | 594 | 610 | 627 | 644 | 660 | 677 | 694 | 710 | 727 | 744 | 760 | 777 | 794 |
A5L | 485 | 502 | 519 | 535 | 552 | 569 | 585 | 602 | 619 | 635 | 652 | 669 | 685 | 702 | 719 | 735 | 752 | 769 | 785 | 802 | 819 |
