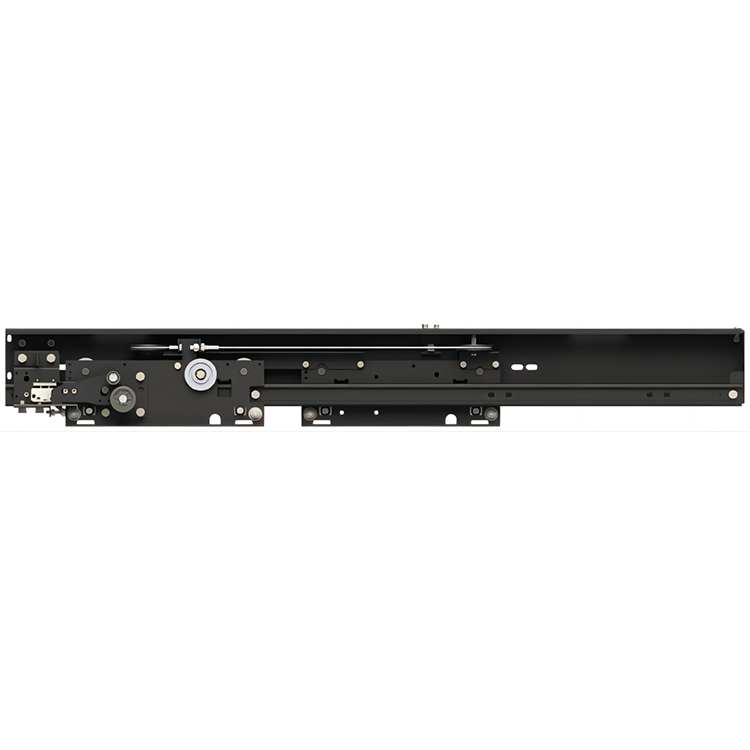

2-Leafs Side Opening Landing Door Device
Common Weight Type
AF NO.:AF-OCM503A
1. Unlocking hole on landing panel, passed 45kg pendulum impact test
2. Closing by weight type, weight and guiding pipe fixed at inner side of landing panel
3. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, Level of protection is IP2X
4. Voltage for door lock: ≤ AC230V、≤ DC110V

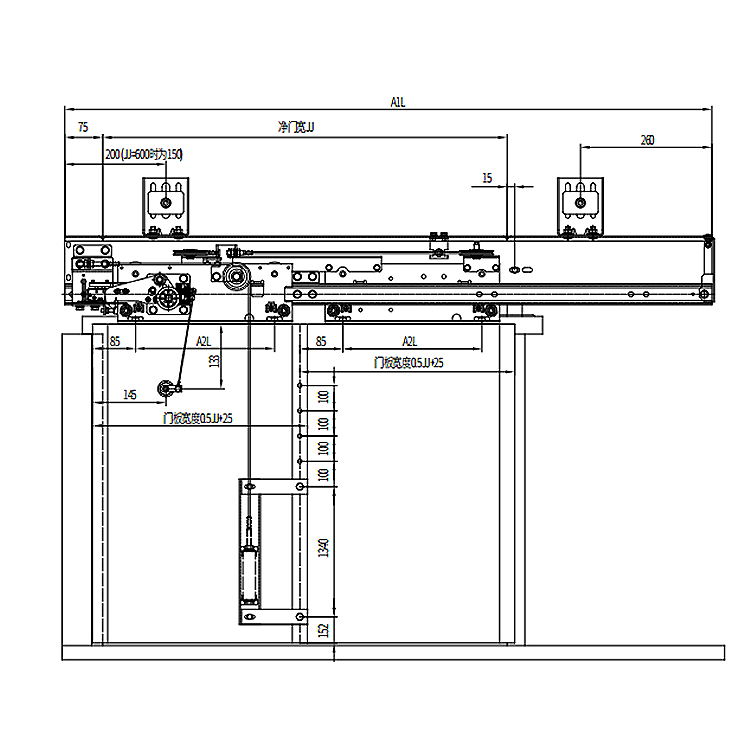

| JJ | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 |
| Al | 980 | 1055 | 1130 | 1205 | 1280 | 1355 | 1430 | 1505 | 1580 | 1655 | 1730 | 1805 | 1880 |
| B1 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 425 | 450 | 475 |
