1. Unlocking hole on landing panel, passed 45kg pendulum impact test
2. Closing by weight type, weight and guiding pipe fixed at inner side of landing panel
3. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, with CE、CU-TR certificate
4. Voltage for door lock: ≤ AC230V、≤ DC110V

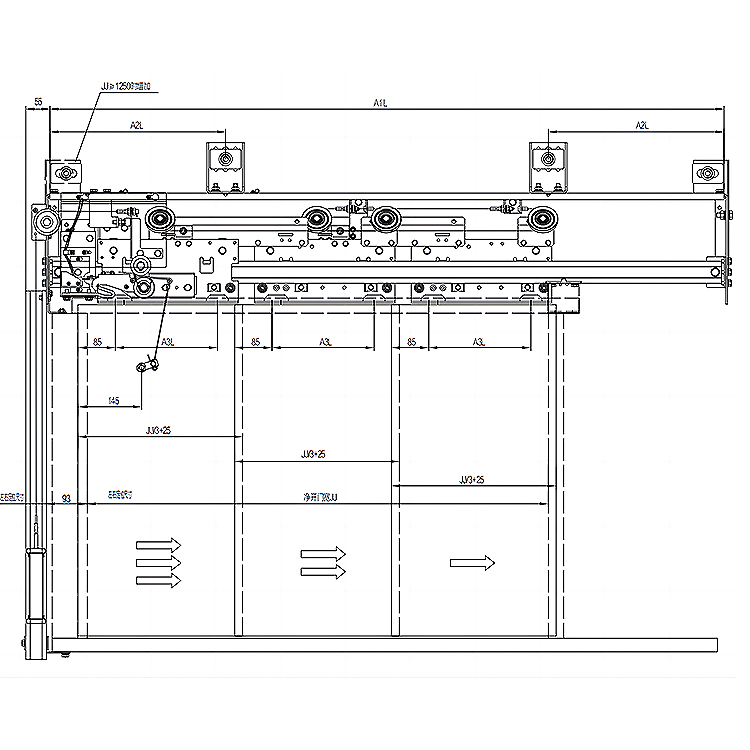

| JJ | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1800 | 1850 | 1900 | 1950 | 2000 |
| AlL | 1335 | 1402 | 1459 | 1535 | 1602 | 1668 | 1735 | 1802 | 1868 | 1935 | 2002 | 2068 | 2135 | 2202 | 2268 | 2335 | 2402 | 2468 | 2535 | 2602 | 2668 | 2735 | 2802 |
| A2L | 400 | 500 | 600 | 650 | |||||||||||||||||||
| A3L | 175 | 192 | 208 | 225 | 242 | 258 | 275 | 292 | 308 | 325 | 342 | 358 | 375 | 392 | 408 | 425 | 442 | 458 | 475 | 495 | 508 | 525 | 542 |
