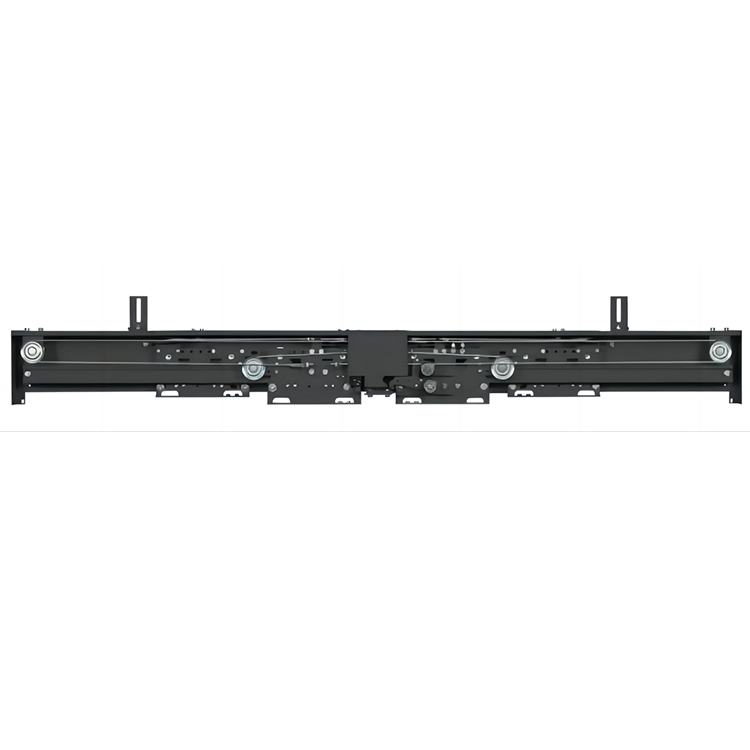

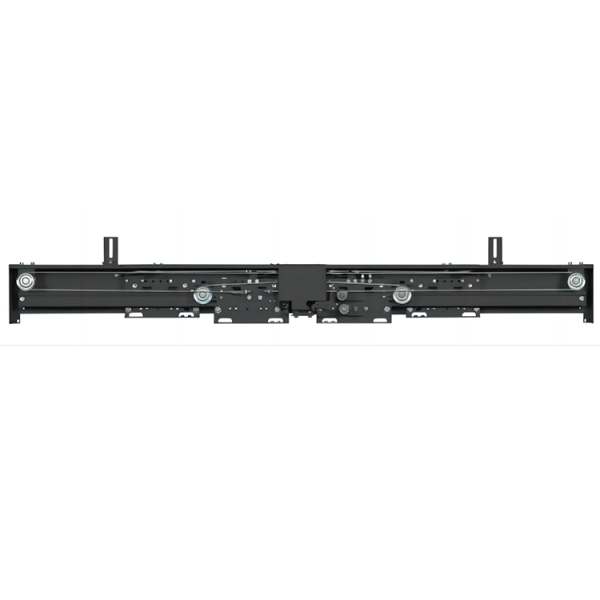

AF-OCM-202C Elevator 4-Leafs Center Opening Landing Door Device Fireproof Type

Product Name Elevator Door Operator
Type Elevator Spare Parts
AF-ID NO. AF-OCM-202C
Model NO. AF-OCM-202C
Delivery Time 4~7 Working days
Delivery DHL,TNT,FedEx,Air,Sea
Payment T/T,Western Union,Paypal

Hot Product

Main Product

1. Quality conform to GB/T27903 120min fireproof certificate requirements

2. Unlocking hole on landing panel,XXXX,passed 45kg pendulum impact test

3. Closing by weight type, weight and guiding pipe fixed at inner side of landing panel

4. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, with CE、CU-TR certificate

5. Voltage for door lock: ≤ AC230V、≤ DC110V

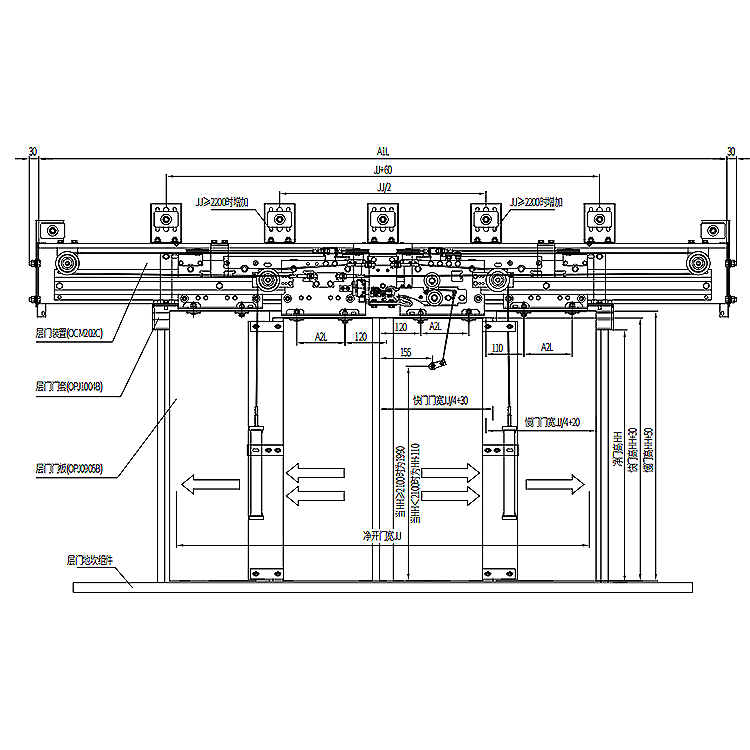

JJ 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000
AlL=15JJ+200 2000  2150 2326 2476 2626 2776 2926 3076 3226 3376 3526 3676 3826 3976 4126 4276 4426 4576 4726
A2L=JJ/4-160 140 165 190 215 240 265 290 315 340 365 390 415 440 465 490 515 540 565 590
HH HH>1900 HH≥2000   HH ≥2100

AF-OCM-202C Elevator 4-Leafs Center Opening Landing Door Device Fireproof Type AF-OCM-202C Elevator 4-Leafs Center Opening Landing Door Device Fireproof Type
