1. Closing by weight type, weight and guiding pipe fixed at two sides of landing panels
2. Unlocking hole on landing panel, passed 45kg pendulum impact test
3. Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, with CE、CU-TR certificate
4. Voltage for door lock: ≤ AC230V、≤ DC110V

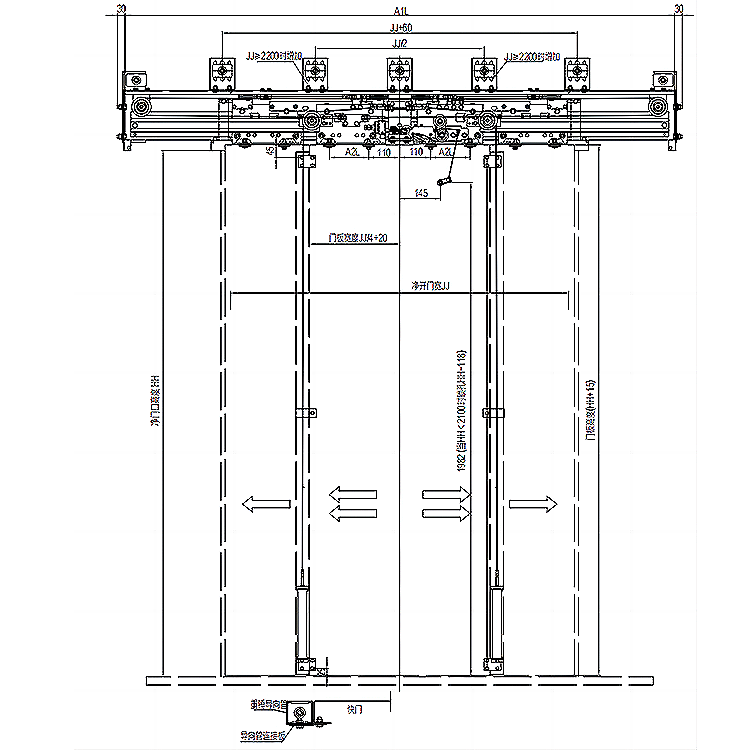

JJ | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 | 3000 |
AlL | 1950 | 2100 | 2250 | 2400 | 2550 | 2700 | 2850 | 3000 | 3150 | 3300 | 3450 | 3600 | 3750 | 3900 | 4050 | 4200 | 4350 | 4500 | 4650 |
A2L | 140 | 165 | 190 | 215 | 240 | 650 | 290 | 315 | 340 | 365 | 390 | 415 | 440 | 465 | 490 | 515 | 540 | 565 | 590 |
