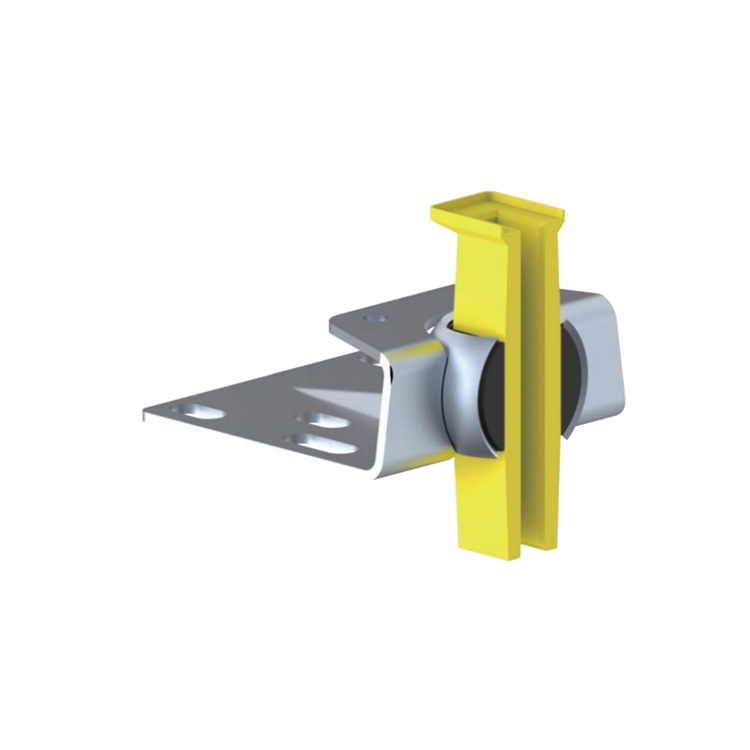

AF-HF-04 1.75m/s Elevator Sliding Guide Shoe For 5/9/10/16mm Guide Rail

Product Name Elevator Sliding Guide Shoe
Type Elevator Spare Parts
AF-ID NO. AF-HF-04
Model NO. HF-04
Delivery Time 3~5Working days
Delivery DHL,TNT,FedEx,Air,Sea
Payment T/T,Western Union,Paypal

Hot Product

Main Product

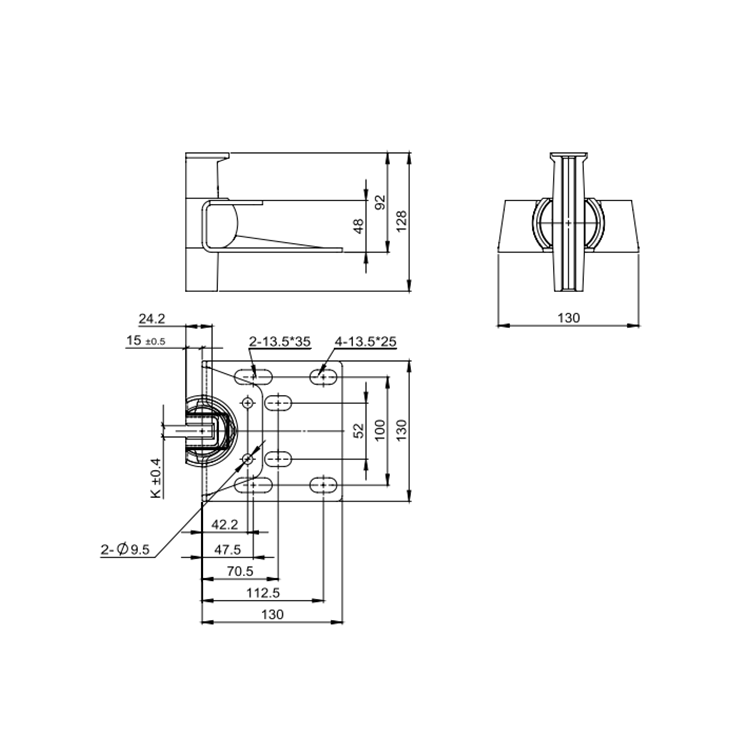

AF-HF-04 1.75m/s Elevator Sliding Guide Shoe For 5/9/10/16mm Guide Rail

Type Rated Speed Rated Load
(Reference)
Width Of Guide Rail Max. Force During Running Max. Force During Loading Lubricants
CWT
[m/s]
CAR
[m/s]
K[mm] Side Pressure
Fx[N]
Normal Pressure
Fy[N]
Side Pressure
Fx[N]
Normal Pressure
Fy[N]
AF-HF-04 2.5 1.75 1250 5/9/10/16 600 600 1700 1700



AF-HF-04 1.75m/s Elevator Lifts Sliding Guide Shoe For 5/9/10/16mm Guide Rail
