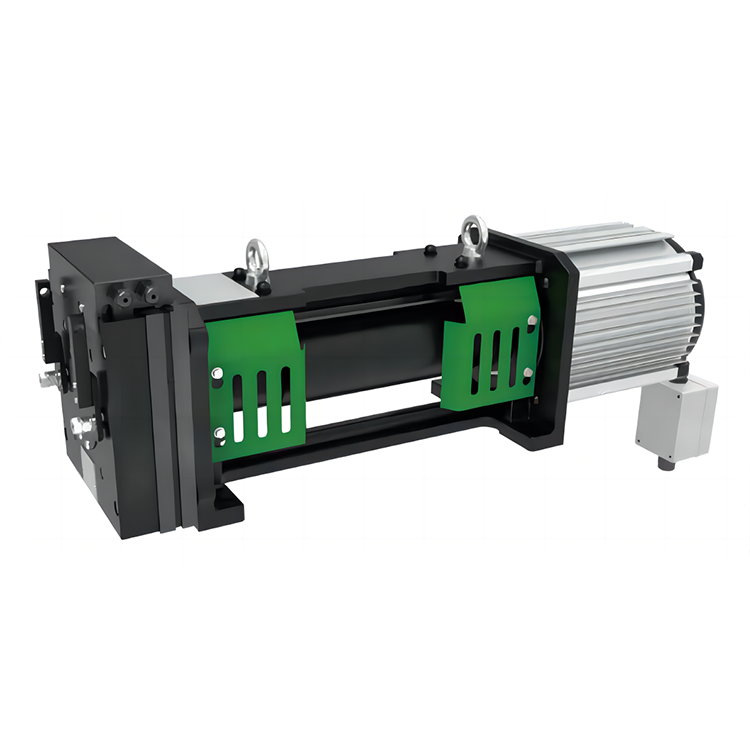

1.GDX machine need to work with GUDA grooved belt,Belt Clip, Counter Pulley, Belt Breaking Detect,
Bake Release, Belt Lock.
2.Traction belt safety factor is 12 times, which allows Maximum weight of car platform sill could be 630kg.
| load | 544 / 630kg |
| Voltage | 220 / 380V |
| Suspension | 2:1 |
| Center Height | 112mm |
| Weight | 90 / 95kg |
| Max.Static Load | 2000kg |
| Brake | DC110V 2*0.6A |
| Duty | S5 40% |
| GENERAL DATA | Load | Lift speed |
Phase Voltage |
Sheave dia | Poles | Traction belt gty |
Rated power |
Rated speed |
Rated torque |
Frequency | Rated Voltage |
Rated Current |
| GDX112-544-4-12XF | 544kg | 0.4m/s | 1/220V | 86mm | 10P | 2n | 1.5kW | 178r/min | 81N·m | 14.8Hz | 149V | 9.6A |
| GDX112-544-4-34XF | 544kg | 0.4m/s | 3/380V | 86mm | 10P | 2n | 1.5kW | 178r/min | 80N·m | 14.8Hz | 299V | 4.8A |
| GDX112-544-6.3-12XF | 544kg | 0.63m/s | 1/220V | 86mm | 10P | 2n | 2.3kW | 280r/min | 78N·m | 23.3Hz | 157V | 12.2A |
| GDX112-544-6.3-34XF | 544kg | 0.63m/s | 3/380V | 86mm | 10P | 2n | 2.3kW | 280r/min | 78N·m | 23.3Hz | 330V | 5.8A |
| GDX112-544-10-12XF | 544kg | 1.0m/s | 1/220V | 86mm | 10P | 2n | 3.6kW | 444r/min | 77N·m | 37.0Hz | 169V | 16.2A |
| GDX112-544-10-34XF | 544kg | 1.0m/s | 3/380V | 86mm | 10P | 2n | 3.6kW | 444r/min | 77N·m | 37.0Hz | 325V | 8.4A |
| GDX112-630-4-12XF | 630kg | 0.4m/s | 1/220V | 86mm | 10P | 2n | 1.7kW | 178r/min | 91N·m | 14.8Hz | 169V | 9.2A |
| GDX112-630-4-34XF | 630kg | 0.4m/s | 3/380V | 86mm | 10P | 2n | 1.7kW | 178r/min | 91N·m | 14.8Hz | 251V | 6.2A |
| GDX112-630-6.3-12XF | 630kg | 0.63m/s | 1/220V | 86mm | 10P | 2n | 2.7kW | 280r/min | 92N·m | 23.3Hz | 163V | 13.6A |
| GDX112-630-6.3-34XF | 630kg | 0.63m/s | 3/380V | 86mm | 10P | 2n | 2.7kW | 280r/min | 92N·m | 23.3Hz | 316V | 7.0A |
| GDX112-630-10-12XF | 630kg | 1.0m/s | 1/220V | 86mm | 10P | 2n | 4.2kW | 444r/min | 90N·m | 37.0Hz | 167V | 18.8A |
| GDX112-630-10-34XF | 630kg | 1.0m/s | 3/380V | 86mm | 10P | 2n | 4.2kW | 444r/min | 90N·m | 37.0Hz | 278V | 11.3A |
