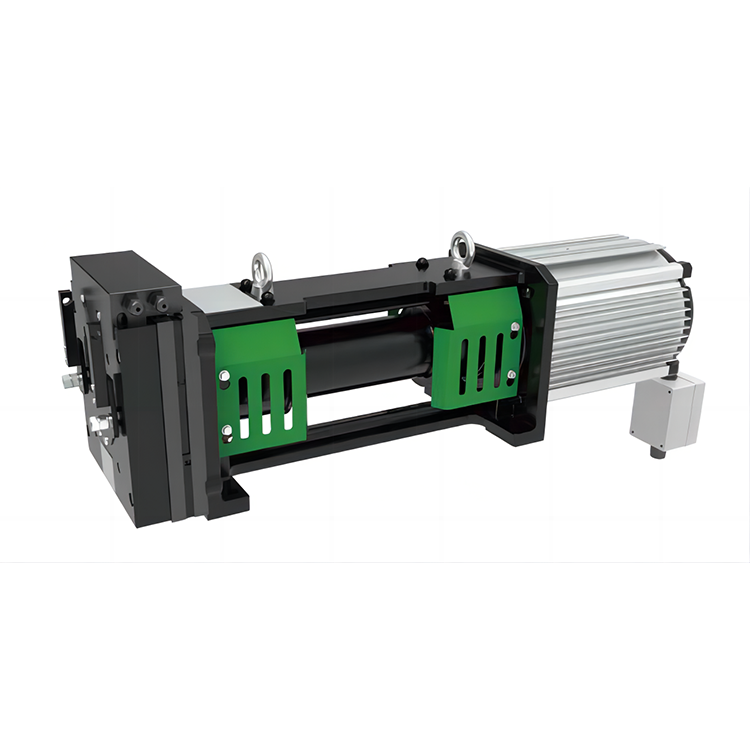

Notes: GDX machine need to work with GUDA grooved belt,Belt Clip, Counter Pulley, Belt Breaking Detect,
Bake Release, Belt Lock.

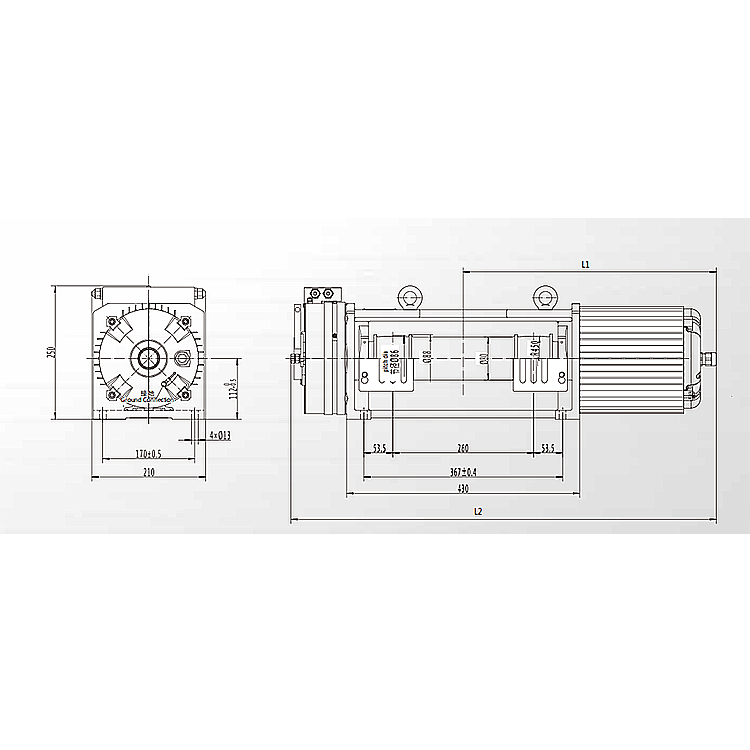

Phase Voltage | Sheave dia | Poles | Traction belt qty | Rated power | Rated speed | Rated torque | Frequ ency | Rated Voltage | Rated Current | L1 | L2 |
1/220V | 104mm | 10P | 2n | 1.1kW | 147r/min | 71N·m | 12.3Hz | 157V | 7.5A | 470 | 790 |
3/380V | 104mm | 10P | 2n | 1.1kW | 147r/min | 71N·m | 12.3Hz | 283V | 4.1A | 470 | 790 |
1/220V | 104mm | 10P | 2n | 1.7kW | 232r/min | 70N·m | 19.3Hz | 147V | 10.3A | 470 | 790 |
3/380V | 104mm | 10P | 2n | 1.7kW | 232r/min | 70N·m | 19.3Hz | 255V | 6.0A | 470 | 790 |
1/220V | 104mm | 10P | 2n | 2.7kW | 367r/min | 70N·m | 30.6Hz | 137V | 15.8A | 470 | 790 |
3/380V | 104mm | 10P | 2n | 2.7kW | 367r/min | 70N·m | 30.6Hz | 275V | 7.9A | 470 | 790 |
1/220V | 104mm | 10P | 2n | 1.27kW | 147r/min | 83N·m | 12.3Hz | 145V | 7.8A | 505 | 825 |
3/380V | 104mm | 10P | 2n | 1.27kW | 147r/min | 83N·m | 12.3Hz | 271V | 4.7A | 505 | 825 |
1/220V | 104mm | 10P | 2n | 2.0kW | 232r/min | 82N·m | 19.3Hz | 141V | 12.3A | 505 | 825 |
3/380V | 104mm | 10P | 2n | 2.0kW | 232r/min | 82N·m | 19.3Hz | 334V | 5.2A | 505 | 825 |
1/220V | 104mm | 10P | 2n | 3.2kW | 367r/min | 83N·m | 30.6Hz | 161V | 15.7A | 505 | 825 |
3/380V | 104mm | 10P | 2n | 3.2kW | 367r/min | 83N·m | 30.6Hz | 265V | 9.4A | 505 | 825 |
load | 400 / 480kg |
Voltage | 220 / 380V |
Suspension | 2:1 |
Center Height | 112mm |
Weight | 87 / 92kg |
Max.Static Load | 2000kg |
Brake | DC110V 2*0.6A |
Duty | S5 40% |
