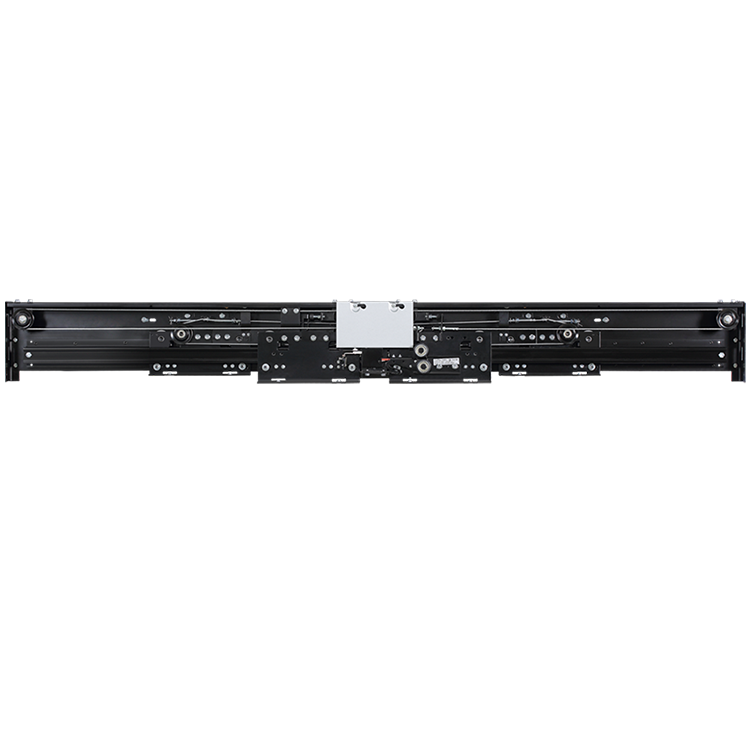

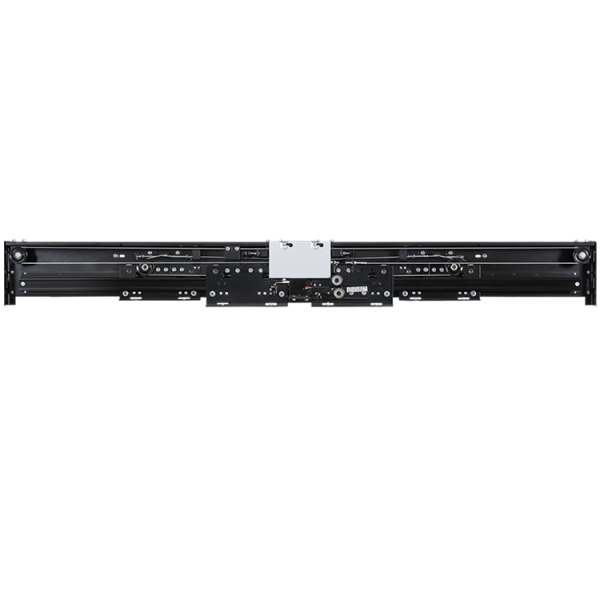

AF-OCM05-EF 4-Leafs Center Opening Landing Door Device Fireproof Adiabatic Type

  4-Leafs Center Opening Elevator Landing Door Device

(Fireproof Adiabatic Type)

AF NO.：AF-OCM05-EF

◎The door hanger has a safety hook to prevent collision and falling. It has passed the 45kg soft pendulum test, which meets to GB/T7588.1/2 standard requirement

◎Door lock voltages ≤ AC230V、≤ DC110V

◎Using common weight self-closing type. Common weight is located on each side of landing door device

◎Standard floor height ≥ HH+700, lowest floor height HH+600

◎Landing door qualified by GB/T27903-2011 E120 and EI120 fireproof door certificate, Russian GOST30247.3 E60 and EI60 fireproof door certificate Door lock qualified by the NATIONAL ELEVATOR INSPECTION CENTER, CE certificate, and CU-TR certificate.
