What Is An Escalator Handrail?

Handrail is a moving belt on the upper part of an escalator or travelator that moves in synchronization with the steps let the passengers to grip for balance.

What Material Is Used For Escalator Handrail?

Escalator handrail belts are composed of many materials, mainly including rubber, PVC, polyurethane. Choosing materials should be considered the characteristics of abrasion resistance, weather resistance, heat resistance or regular maintenance,etc…

1. Rubber material

Rubber handrail is one of the traditional materials for escalator handrail with non-slip, wear-resisting and durability characteristics. However, rubber material has poor weather resistance and is easy to be aged and deformed. Therefore, it is suggested that when choosing the rubber material, it should be low-temperature and not easy to aging.

2. PVC material

PVC handrail is one of the most widely used material in the current escalator market, which has the features of anti-slip, anti-static and fire extinguishing. Comparing with other materials, its price more favorable and easy to install and replace.

3. Polyurethane (PU) material

Polyurethane (PU) handrail is a relatively new material with high strength, good abrasion resistance, aging resistance and other characteristics. However, the escalator TPU handrail price is high and suitable for high-end shopping malls, airports or other occasions.

Escalator Handrail Structure

The structure of handrail belt is usually divided into five layers, from outside to inside as ① surface cover rubber , ② skeleton layer, ③ steel wire curtain, ④ skeleton layer, ⑤ sliding layer. Currently, our company can provide various types, specifications, and colors of handrail belts for selection and customization.

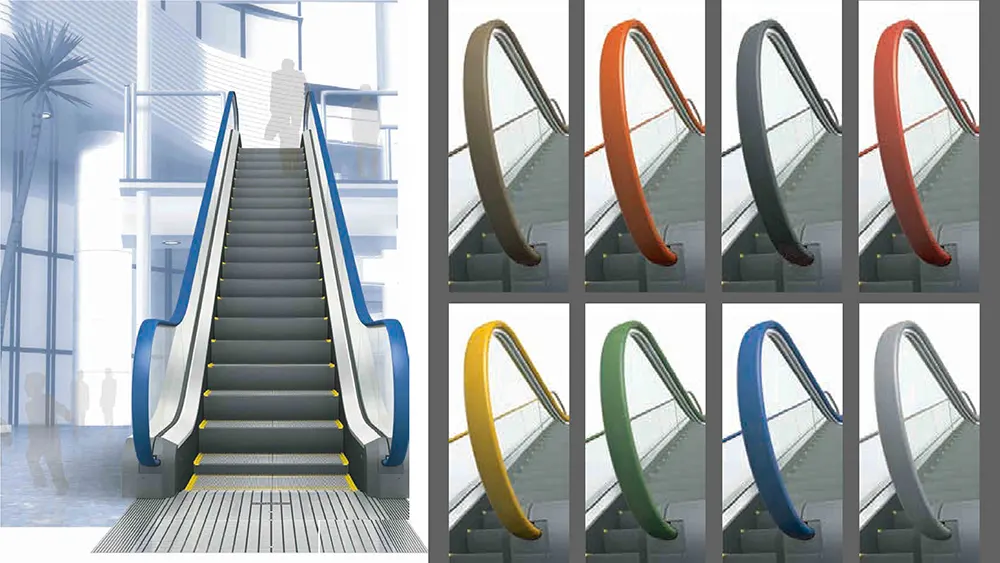

Escalator Handrail Colors

Black color handrail is the standard color and widely used in the market because of its resistant to dirty, easy matching different occasions,also the price is more cheaper than others.

Customized Colorful handrails: According to customer requirements, multiple colors can be customized,in order to better identify and distinguish item.such as blue, gray, red ,yellow, green and so on.

Our company have many escalator handrail colors to choose or customize. All of them are well-designed and using high performance materials. They are resistant to high temperature、oil stain、friction and aging. More safety and durable! Contacting us to make your own unique handrail now.

How to Measure Your Escalator Handrail Length？

1. Mark the start mark A on the incline handrail.
2. Mark the second mark B on the other incline side of the handrail.
3. Record the 1st data,run the escalator to measure another distance.
4. Repeat the 2nd step (Usually ,measuring3 times)
5. Measure the distance④between A and D,then add your other measuring data ① ② ③

How To Customize Escalator Handrail?

Different brands of escalator handrail belts have varying cross-sectional dimensions and shapes.Usually there are 3 shapes: C type、V type、SDS type. In purchasing, we need to know the following parameters:.(See the attachment)

1. Mouth Width (d)
2. Inner Width (D）
3. Total Width (D1)
4. Inner High (h)
5. Top Thickness (h1)
6. Total High (H)
7. Escalator Brand
8. Send us your old handrail photos to confirm

Escalator rollers are crucial components in the smooth operation of escalators and moving walkways, ensuring stability and reducing friction during movement.A-FLY, a professional escalator rollers supplier and company. Our company specializes in producing high-quality escalator rollers, committed to delivering durable and high-performance products. Our rollers are including escalator step rollers 、chain rollers、pressure/support rollers…etc. All of them are made from premium materials such as polyurethane and rubber, ensuring long-lasting wear resistance and smooth operation. We focus on precision engineering to create products that minimize noise and friction, thereby enhancing the overall safety and efficiency of escalators.

Escalator rollers applications:

Our escalator rollers are widely used in high-traffic environments like shopping malls, airports, and public transit systems, reflecting our dedication to excellence in every detail.

How to Purchase and customize escalator rollers?

When buying escalator rollers, you usually need to provide the following parameters:

_Outer diameter

_Inner diameter

_Thickness

_Ball bearing

_Quantity

_Escalator brand

_Application (Indoor/Outdoor Use)

Escalator Handrail Pressure Rollers

Handrails play a crucial role in transporting passengers on escalators and moving walkways

Escalator pressure rollers guide and support the handrails, playing a key role by absorbing the stress from pre-tensioned handrails and their own weight. High-quality escalator pressure rollers can better protect and extend the lifespan of your escalator handrails.

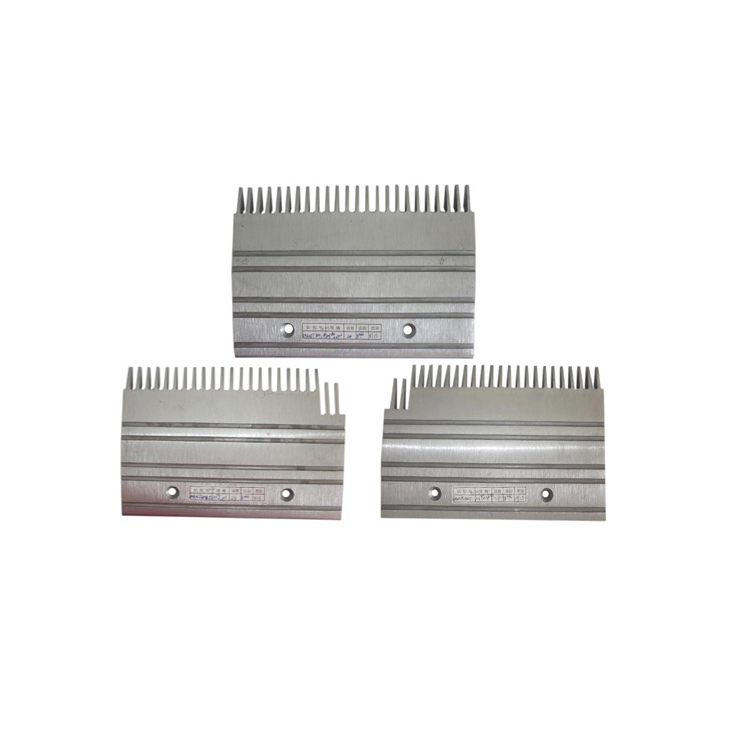

Escalator comb plate is a crucial component in the escalator system to facilitate the transition for passengers and to mesh with the steps, pallets, or moving walkway belts,which is located at both top and bottom ends of the entry and exit points.

How to choose the right escalator comb plate?

1. Pleaseconfirm your escalator brand.
2. Provide your escalator comb plate front and back photos to the supplier. Then the supplier can check the material of your escalator comb plate, like aluminum alloy or plastic, and its color, like yellow,silver or black.

3.If there is the model number on the comb plate,please also show it.

4.Confirm size specifications

• Holesdistance
• The number of escalator comb plate teeth
• Total length and width

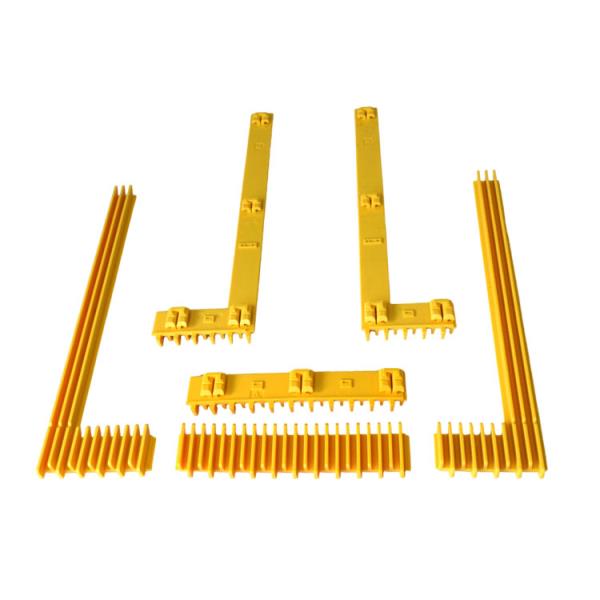

What is the demarcation on escalators?

Escalator demarcations are decorative edge strip lines installed on the edges of the escalator steps,typically in yellow color, which are designed to provide a warning function. These edge strips enhance the aesthetic appeal of escalators while reminding passengers to stay alert and avoid accidents. Escalator edge strips come in various materials and colors to meet different environmental and usage requirements. For example, yellow edge strips are visually striking, effectively catching passengers’ attention, especially in low-light or complex environments, thus enhancing their safety warning function. Additionally, the material and design of the escalator edge strips must consider their durability and adaptability to ensure safety and stability during long-term use.

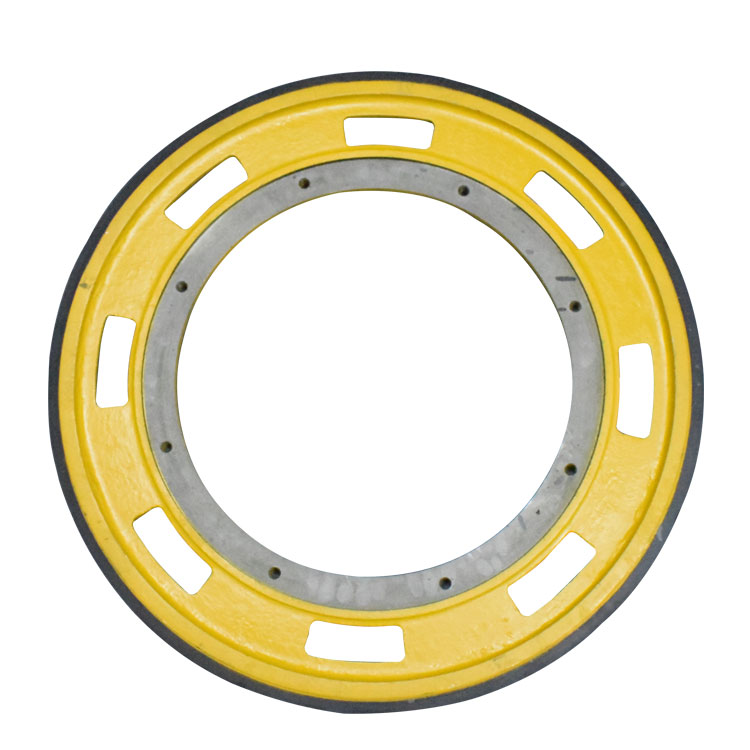

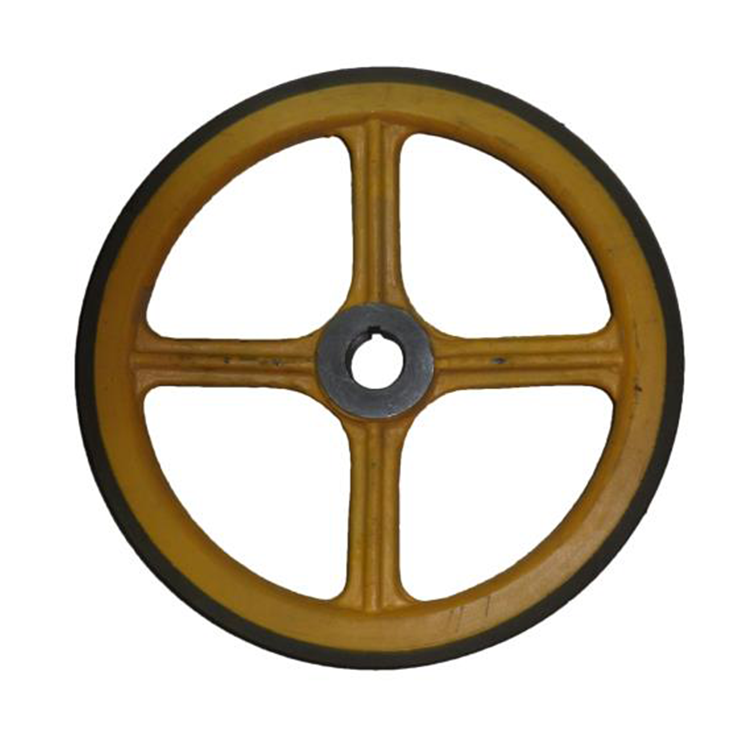

What is escalator friction wheel?

Escalator friction wheel is one of the crucial components of an escalator. It drives the escalator by utilizing friction. The friction wheel moves the escalator belt, which in turn transports people to the desired location. The core part of the friction wheel is usually made of metal, with an outer layer of plastic to prevent slipping and reduce noise.

How does escalator friction wheel work?

The escalator friction wheel is one of the crucial components of an escalator. It drives the escalator by utilizing friction. The friction wheel moves the escalator belt, which in turn transports people to the desired location. The core part of the friction wheel is usually made of metal, with an outer layer of plastic to prevent slipping and reduce noise.

Function of the Escalator Friction Wheel

The function of the escalator friction wheel is extremely important as it directly determines the efficiency and safety of the escalator operation. The speed of the escalator is controlled by adjusting the pressure of the friction wheel. The greater the friction between the friction wheel and the belt, the faster the escalator moves. Therefore, the role of the escalator friction wheel is to control the speed of the escalator.
